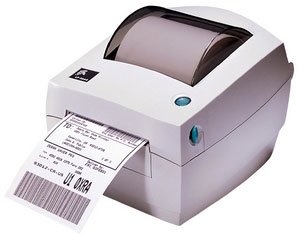

Zebra 284Z-20401-0001 Barcode Label Printer

Zebra GX42-200411-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX42-200411-000 Barcode Label Printer.
Zebra LP 2844-Z - Direct thermal, 203 dpi, 4 ips, 4" print width, serial, USB and PrintServerII Interfaces, 8MB SDRAM, 4MB Flash, Dispenser and ZPL. Includes U.S. power supply. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 x 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Dispenser feature for better reliance and usability
  • Comes with 8 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra LP 2844-Z Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 284Z-20401-0001 Barcode Label Printer
Zebra 284Z-20401-0001 Barcode Label Printer Zebra 284Z-20401-0001 Barcode Label Printer Zebra 284Z-20401-0001 Barcode Label Printer Zebra 284Z-20401-0001 Barcode Label Printer
Zebra 284Z-20401-0001 Barcode Label Printer
Zebra 284Z-20401-0001 Barcode Label Printer
Zebra 284Z-20401-0001 Barcode Label Printer

Full specifications (PDF)

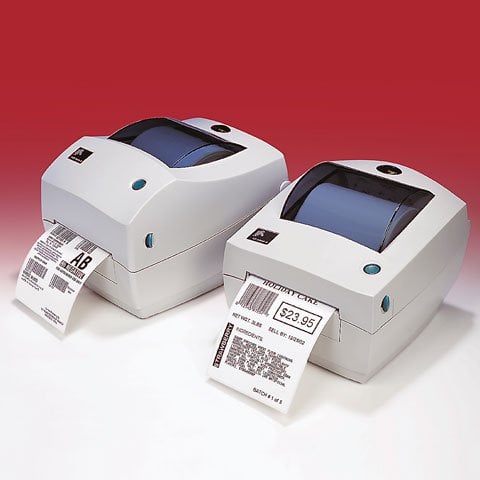

Zebra LP 2844-Z Barcode Label Printer Model Overview
The dynamic Zebra LP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra LP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-20401-0001 Barcode Label Printer Overview

The LP 2844-Z integrates easily into a variety of printing applications, including shipping and receiving, inventory control, healthcare specimen labeling and patient tracking, coupon and receipt printing, transportation and logistics, and e-commerce postage.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • UPC-A
  • UPC-E
  • UCC
  • EAN/JAN-8
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Industrial 2 of 5
  • POSTNET
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • EAN With 2 or 5 Digit Extension
  • Code 11
  • ISBT-128
  • EAN/JAN-13
  • LOGMARS
  • MSI
  • Code 49
  • Codablock
  • Data Matrix
  • Code 2 of 5
Features:
Dispenser
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.7"
Width:
7.9"
Depth:
8.4"
Miscellaneous
Package Contents:
  • LP 2844-Z Label Printer
  • User Documentation: English, European, Latin America
Additional Information:

Included Features:

  • Dispenser
  • Fonts:
  • Supports user-defined fonts and graphics--inlcuding custom logos
  • IBM Code Page 850 International Characters
  • Dual Media Sensors
  • Transmissive
  • Reflective
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • Subpart B
  • VCCI/PSE
  • C-TICK
  • BSMI
  • UL-CUL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CB
  • CCC/SRRC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0732387103219
UPC: 732387103219
EAN: 0732387103219
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 284Z-20401-0001 Barcode Label Printer is also known as ZEB-284Z204010001 or 284Z204010001.
