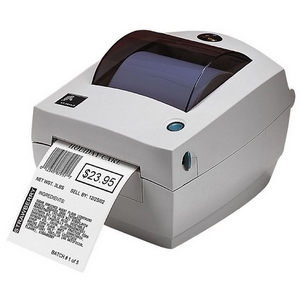

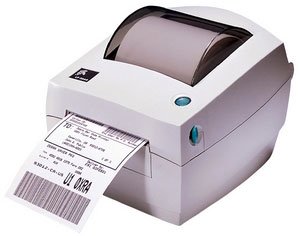

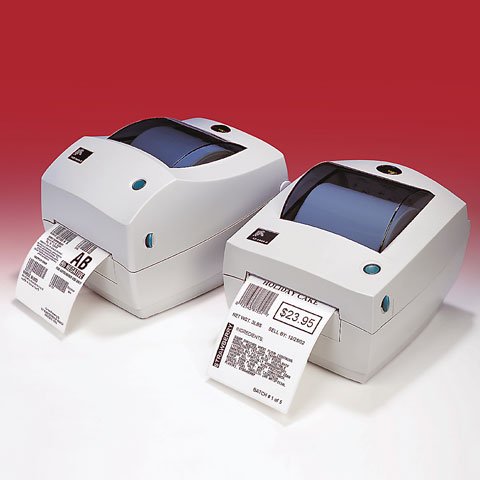

Zebra LP 2844-Z – Barcode Label Printer – 203 dpi – Direct Thermal – Cutter, Real-Time Clock

Part Number: 284Z-20302-0001
Model: LP 2844-Z
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct thermal, 203 dpi, 4 ips, 4" print width, Serial, Parallel and USB Interfaces, 8MB SDRAM, 4MB Flash, Cutter, no real-time clock and ZPL. Includes U.S. power supply. Order cables separately. See accessories.
Explore all Zebra LP 2844-Z Barcode Label Printers
Add to Quote
Zebra 284Z-20302-0001 Barcode Label Printer
Zebra 284Z-20302-0001 Barcode Label Printer
Zebra 284Z-20302-0001 Barcode Label Printer
Zebra 284Z-20302-0001 Barcode Label Printer
Zebra 284Z-20302-0001 Barcode Label Printer Zebra 284Z-20302-0001 Barcode Label Printer Zebra 284Z-20302-0001 Barcode Label Printer

Full specifications (PDF)

Zebra LP 2844-Z Barcode Label Printer Model Overview

The dynamic Zebra LP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra LP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-20302-0001 Barcode Label Printer Overview

The direct thermal LP 2844-Z bar code label printer brings powerful performance to applications requiring a space-saving. The LP 2844-Z integrates easily into a variety of printing applications, including shipping and receiving, inventory control, healthcare specimen labeling and patient tracking, coupon and receipt printing, transportation and logistics, and e-commerce postage.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • UPC-A
  • UPC-E
  • UCC
  • EAN/JAN-8
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Industrial 2 of 5
  • POSTNET
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • EAN With 2 or 5 Digit Extension
  • Code 11
  • ISBT-128
  • EAN/JAN-13
  • LOGMARS
  • MSI
  • Code 49
  • Codablock
  • Data Matrix
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.7"
Width:
7.9"
Depth:
8.4"
Miscellaneous
Package Contents:
  • LP 2844-Z Label Printer
  • User Documentation: English/European/Latin America
Additional Information:

Included Features:

  • Cutter
  • Fonts:
  • Supports user-defined fonts and graphics--inlcuding custom logos
  • IBM Code Page 850 International Characters
  • Dual Media Sensors
  • Transmissive
  • Reflective
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • Subpart B
  • VCCI/PSE
  • C-TICK
  • UL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
