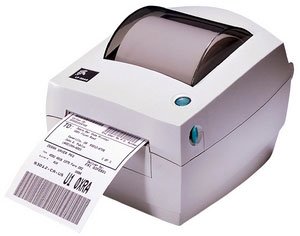

Zebra 284Z-20300-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra LP 2844-Z - Direct thermal, 203 dpi, 4 ips, 4" print width, parallel, serial, & USB interfaces, 8MB SDRAM, 4MB flash and ZPL. Includes US power supply. Order cables separately. See accessories.

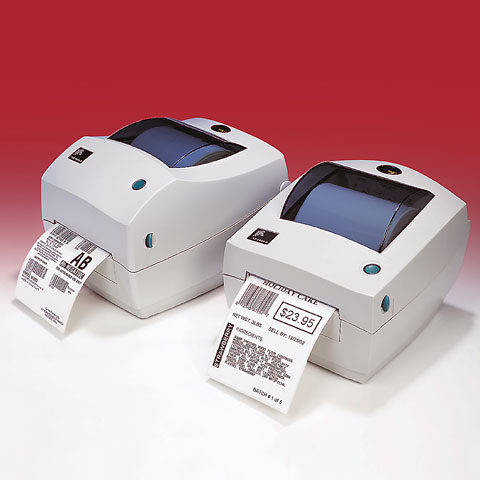

The Zebra LP 2844-Z: The easiest printers to load on the planet!

The dynamic Zebra LP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra LP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 x 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • UPC-A
    • UPC-E
    • UCC
    • EAN/JAN-8
    • Plessey
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Industrial 2 of 5
    • POSTNET
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • EAN With 2 or 5 Digit Extension
    • Code 11
    • ISBT-128
    • EAN/JAN-13
    • LOGMARS
    • MSI
    • Code 49
    • Codablock
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: 2800
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: LP 2844-Z
  • Product Name: LP 2844-Z Thermal Label Printer

Physical Characteristics

  • Height: 6.6"
  • Width: 7.6"
  • Depth: 8.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • LP 2844-Z Label Printer
    • User Documentation: English, European, Latin America
    • LP 2844-Z Label Printer
    • User Documentation: English, European, Latin America
  • Certifications & Standards:
    • Emissions:
    • FCC Part 15
    • Subpart B
    • VCCI
    • C-Tick
    • Emissions and Susceptibility:
    • CE: EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-3
    • EN55024
    • Safety:
    • CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A4
    • UL 60950
    • C-UL
    • IRAM
    • NOM
    • AAMI
    • CCC
    • GOST
    • BSMI
  • Additional Information:
    • Fonts:
    • Supports user-defined fonts and graphics--inlcuding custom logos
    • IBM Code Page 850 International Characters
    • Dual Media Sensors
    • Transmissive
    • Reflective

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type: Label
  • Media Thickness: 7.09 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • ZBI

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model LP 2844-Z
Interface Options Parallel, USB, Serial
Label Core 1 inch
Max Label Width 4.25
Printer Type Desktop
Print Resolution 203 dpi
Print Speed 4
Print Method Direct Thermal
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Printer Mobility Not Mobile
