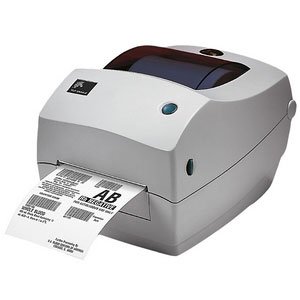

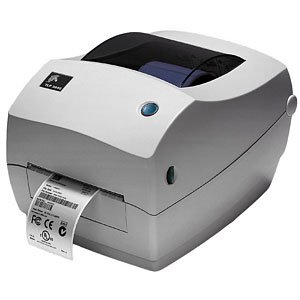

Zebra 284Z-10440-0001 Barcode Label Printer

The Zebra 284Z-10440-0001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra TLP 2844-Z - TLP 2844-Z Direct Thermal-Thermal Transfer Barcode Printer (Serial, USB and Internal ZebraNet PrintServer II Interfaces, 240VAC Australian, 8MB SDRAM, 4MB Flash and No RTC)
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports black bar media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
  • 4.25" x Roll Paper media size for dependable, efficient results with maximum productivity
Read More

Need a different version? See all Zebra TLP 2844-Z Barcode Label Printers

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Zebra 284Z-10440-0001 Barcode Label Printer
Zebra 284Z-10440-0001 Barcode Label Printer
Zebra 284Z-10440-0001 Barcode Label Printer
Zebra 284Z-10440-0001 Barcode Label Printer
Zebra 284Z-10440-0001 Barcode Label Printer Zebra 284Z-10440-0001 Barcode Label Printer Zebra 284Z-10440-0001 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 2844-Z Barcode Label Printer Model Overview
The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-10440-0001 Barcode Label Printer Overview

The LP 2844-Z integrates easily into a variety of printing applications, including shipping and receiving, inventory control, healthcare specimen labeling and patient tracking, coupon and receipt printing, transportation and logistics, and e-commerce postage.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128
  • EAN-14
  • UPC-E with 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • RSS14 Limited
  • RSS14 Truncated
  • RSS14 Stacked
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • PDF-417
  • Micro PDF-417
  • RSS Composite
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Continuous Form
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Linerless
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
Media Size:
4.25" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Height:
6.7"
Width:
7.9"
Depth:
8.4"
Miscellaneous
Package Contents:
  • LP 2844-Z Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Head-up sensor
  • No Real Time Clock
  • Zebra Printer Management
  • Power: 240V A.C. Australian
  • Printer Font Set: USA and European (standard)
  • User Documentation: English/European/Latin America
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • Subpart B
  • VCCI
  • PSE
  • C-TICK
  • UL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC
  • SRRC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 284Z-10440-0001 Barcode Label Printer is also known as ZEB-284Z-10440-0001
