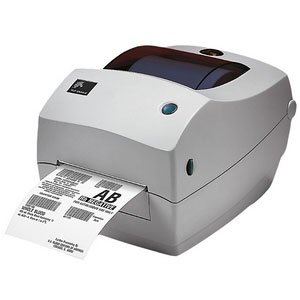

Zebra 284Z-10402-0001 Barcode Label Printer

Zebra GX42-102412-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX42-102412-000 Barcode Label Printer.
Zebra TLP 2844-Z - Thermal transfer & direct thermal, 203 dpi, 4 ips, 4" print width, Serial and USB Interfaces, 8MB SDRAM, 4MB Flash, Cutter, PrintServerII and ZPL. Includes U.S. power supply. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 x 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for dependable, desired results
  • Supports label media type for better reliance and maximum usability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra TLP 2844-Z Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 284Z-10402-0001 Barcode Label Printer
Zebra 284Z-10402-0001 Barcode Label Printer Zebra 284Z-10402-0001 Barcode Label Printer Zebra 284Z-10402-0001 Barcode Label Printer Zebra 284Z-10402-0001 Barcode Label Printer
Zebra 284Z-10402-0001 Barcode Label Printer
Zebra 284Z-10402-0001 Barcode Label Printer
Zebra 284Z-10402-0001 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 2844-Z Barcode Label Printer Model Overview
The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-10402-0001 Barcode Label Printer Overview

The TLP 2844-Z label printer brings powerful performance to applications requiring a space-saving, desktop-size, 4.09" (104 mm) printer. Ease of use-including its OpenACCESS design and clear media window for simple media loading and monitoring-makes the TLP 2844-Z a foolproof means to increase workplace efficiency.

The TLP 2844-Z integrates easily into a variety of printing applications, including shipping and receiving, inventory control, healthcare specimen labeling and patient tracking, coupon and receipt printing, transportation and logistics, and e-commerce postage.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Codablock
  • UPC-A
  • UPC-E
  • EAN/JAN-13
  • EAN/JAN-8
  • UCC
  • ISBT-128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Maxi Code
  • Micro PDF-417
  • MSI
  • Plessey
  • PDF-417
  • POSTNET
  • Standard 2 of 5
  • Data Matrix
  • QR Code
  • LOGMARS
  • EAN With 2 or 5 Digit Extension
  • Code 2 of 5
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 2844-Z Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Included Feature: Cutter
  • No Real Time Clock
  • Supports user-defined fonts and graphics, including custom logos
  • IBM Code Page 850 International Characters
  • Construction: High-impact, double-walled plastic enclosure

  • Dual Media Sensors:
  • Transmissive
  • Reflective
  • Ribbons:
  • Width (outside diameter): 1.3" to 4.3"
  • Length: 2,928"
Platform Supported:
PC
Certifications & Standards:
  • UL-CUL
  • FCC
  • VCCI/PSE
  • C-TICK
  • CB
  • CSA
  • NOM
  • CE
  • IRAM/S
  • CCC/SRRC
  • GOST-R
  • BSMI
System Requirements:

PC:

  • Windows 95
  • Windows 98
  • Windows NT 4.0
  • Windows 2000
  • Windows XP
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 284Z-10402-0001 Barcode Label Printer is also known as ZEB-284Z104020001 or 284Z104020001.
