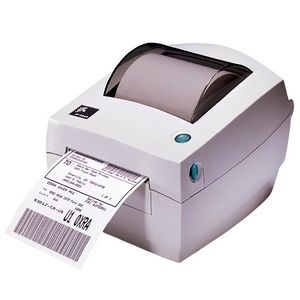

Zebra 284Z-10401-0001 Barcode Label Printer

Zebra GX42-102411-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX42-102411-000 Barcode Label Printer.
Zebra TLP 2844-Z - Thermal transfer & direct thermal, 203 dpi, 4 ips, 4" print width, serial, USB, & ZebraNet PrintServer II interfaces, 8MB SDRAM, 4MB flash and ZPL. Includes U.S. power supply & dispenser. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Dispenser
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 x 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports label media type for better reliance and maximum usability
  • Dispenser feature for maximum efficiency and convenience
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra TLP 2844-Z Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 284Z-10401-0001 Barcode Label Printer
Zebra 284Z-10401-0001 Barcode Label Printer Zebra 284Z-10401-0001 Barcode Label Printer Zebra 284Z-10401-0001 Barcode Label Printer Zebra 284Z-10401-0001 Barcode Label Printer
Zebra 284Z-10401-0001 Barcode Label Printer
Zebra 284Z-10401-0001 Barcode Label Printer
Zebra 284Z-10401-0001 Barcode Label Printer

Full specifications (PDF)

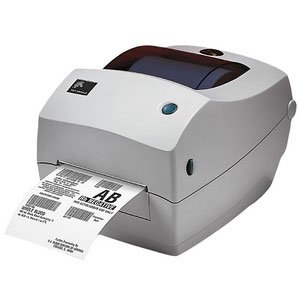

Zebra TLP 2844-Z Barcode Label Printer Model Overview
The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-10401-0001 Barcode Label Printer Overview

The thermal transfer TLP 2844-Z bar code label printer brings powerful performance to applications requiring a space-saving, desktop-size, 4.09" (104 mm) printer. Ease of use-including its OpenACCESS design and clear media window for simple media loading and monitoring-makes the TLP 2844-Z a foolproof means to increase workplace efficiency.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Codablock
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UCC
  • ISBT-128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Maxi Code
  • Micro PDF-417
  • MSI
  • Plessey
  • PDF-417
  • POSTNET
  • Standard 2 of 5
  • Data Matrix
  • QR Code
  • LOGMARS
  • EAN With 2 or 5 Digit Extension
Features:
Dispenser
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 2844-Z Label Printer
  • User Documentation: English
Additional Information:

Included Features:

  • Dispenser
  • Supports user-defined fonts and graphics--inlcuding custom logos
  • IBM Code Page 850 International Characters
  • Construction: High-impact, double-walled plastic enclosure
  • Dual Media Sensors:
  • Transmissive
  • Reflective
  • Ribbons:
  • Width (outside diameter): 1.3" to 4.3"
  • Length: 2,928"
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
System Requirements:

PC:

  • Windows 95
  • Windows 98
  • Windows NT 4.0
  • Windows 2000
  • Windows XP
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 284Z-10401-0001 Barcode Label Printer is also known as ELT-284Z104010001 or 284Z104010001.
