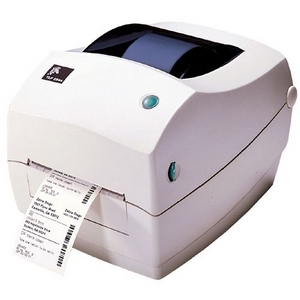

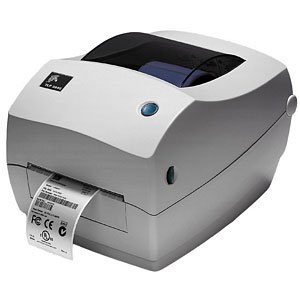

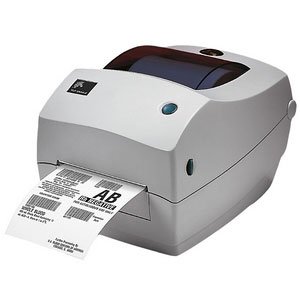

Zebra TLP 2844-Z – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter

Part Number: 284Z-10302-0001
Model: TLP 2844-Z
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 4 ips, 4" print width, Serial, Parallel and USB Interfaces, 8MB SDRAM, 4MB Flash, Cutter, No Real Time Clock and ZPL. Includes U.S. power supply. Order cables separately. See accessories.
Explore all Zebra TLP 2844-Z Barcode Label Printers
Add to Quote
Zebra 284Z-10302-0001 Barcode Label Printer
Zebra 284Z-10302-0001 Barcode Label Printer
Zebra 284Z-10302-0001 Barcode Label Printer
Zebra 284Z-10302-0001 Barcode Label Printer
Zebra 284Z-10302-0001 Barcode Label Printer Zebra 284Z-10302-0001 Barcode Label Printer Zebra 284Z-10302-0001 Barcode Label Printer

Full specifications (PDF)

Zebra TLP 2844-Z Barcode Label Printer Model Overview

The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-10302-0001 Barcode Label Printer Overview

The TLP 2844-Z Label Printer integrates easily into a variety of printing applications, including shipping and receiving, warehouse shelf labeling and inventory control, hospitals, healthcare, and medical laboratories, transportation and logistics, and e-commerce postage.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Codablock
  • UPC-A
  • UPC-E
  • EAN/JAN-8
  • EAN/JAN-13
  • UCC
  • ISBT-128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Maxi Code
  • Micro PDF-417
  • MSI
  • Plessey
  • PDF-417
  • POSTNET
  • Standard 2 of 5
  • Data Matrix
  • QR Code
  • LOGMARS
  • EAN With 2 or 5 Digit Extension
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 2844-Z Label Printer
  • User Documentation: English
Additional Information:
  • Included Feature: Cutter
  • Supports user-defined fonts and graphics, inlcuding custom logos
  • IBM Code Page 850 International Characters
  • Construction: High-impact, double-walled plastic enclosure
  • Dual Media Sensors:
  • Transmissive
  • Reflective
  • Ribbons:
  • Width (outside diameter): 1.3" to 4.3"
  • Length: 2,928"
Platform Supported:
PC
Certifications & Standards:
  • UL-CUL
  • FCC
  • VCCI/PSE
  • C-TICK
  • CB
  • CE
  • CCC/SRRC
  • NOM
  • IRAM/S
  • BSMI
  • GOST-R
  • CAS
System Requirements:

PC:

  • Windows 95
  • Windows 98
  • Windows NT 4.0
  • Windows 2000
  • Windows XP
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
