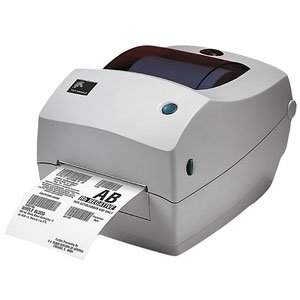

Zebra 284Z-10301-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra TLP 2844-Z - Thermal transfer, 203 dpi, 4 ips, 4" print width, parallel, serial, & USB interfaces, 8MB SDRAM, 4MB flash and ZPL. Includes US power supply & dispenser. Order cables separately. See accessories.
The Zebra TLP 2844-Z: The easiest printers to load on the planet!

The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • ZPL
    • ZPL II
    • ZBI
  • Input Voltage Range: 100 to 240 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.8" (198.12mm) x 9.4" (239mm)
    • 6.8" (172.72mm) x 7.8" (198.12mm) x x 9.4" (239mm)
  • Weight: 3.7 lb (1.68 kg)

Included Features

  • Included Features: Dispenser

Agency Approvals

  • Agency Approvals:
    • FCC Part 15
    • Subpart B
    • VCCI
    • C-Tick
    • CE: EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-3
    • EN55024
    • CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A4
    • UL 60950
    • C-UL
    • IRAM
    • NOM
    • AAMI
    • BSMI
    • GOST

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating
    • 5 to 95% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Label Setup: Wound Out
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Other

  • Package Contents:
    • TLP 2844-Z Label Printer
    • User Documentation: English/European/Latin America

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model TLP 2844-Z
Interface Options Serial, Parallel, USB
Printer Type Desktop
Label Core 1 inch
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 4
Max Label Width 4.25
Included Features Dispenser
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Printer Mobility Not Mobile
Ribbon Core 0.5
