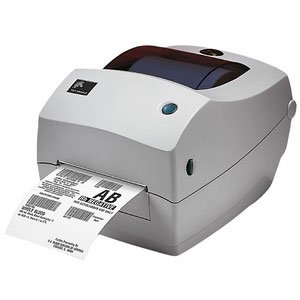

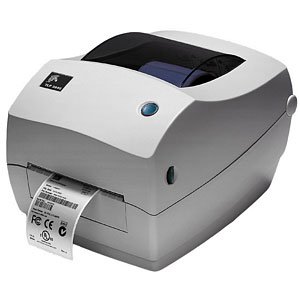

Zebra TLP 2844-Z – Barcode Label Printer – 203 dpi – Thermal Transfer – Real-Time Clock

Part Number: 284Z-10300-0041
Model: TLP 2844-Z
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, Serial, Parallel and USB Interfaces, 8MB SDRAM, 12MB Flash. Includes 100-240VAC US-European and Real Time Clock
Explore all Zebra TLP 2844-Z Barcode Label Printers
Add to Quote
Zebra 284Z-10300-0041 Barcode Label Printer
Zebra 284Z-10300-0041 Barcode Label Printer
Zebra 284Z-10300-0041 Barcode Label Printer
Zebra 284Z-10300-0041 Barcode Label Printer
Zebra 284Z-10300-0041 Barcode Label Printer Zebra 284Z-10300-0041 Barcode Label Printer Zebra 284Z-10300-0041 Barcode Label Printer

Full specifications (PDF)

Zebra TLP 2844-Z Barcode Label Printer Model Overview

The dynamic Zebra TLP 2844-Z features a powerful combination of proven Zebra attributes. The Zebra TLP 2844-Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink .
Zebra 284Z-10300-0041 Barcode Label Printer Overview

The thermal transfer TLP 2844-Z bar code label printer brings powerful performance to applications requiring a space-saving, desktop-size, 4.09" (104 mm) printer. Ease of use-including its OpenACCESS design and clear media window for simple media loading and monitoring-makes the TLP 2844-Z a foolproof means to increase workplace efficiency.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 49
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Codablock
  • UPC-A
  • UPC-E
  • EAN/JAN-8
  • EAN/JAN-13
  • UCC
  • ISBT-128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Maxi Code
  • Micro PDF-417
  • MSI
  • Plessey
  • PDF-417
  • POSTNET
  • Standard 2 of 5
  • Data Matrix
  • QR Code
  • LOGMARS
  • EAN With 2 or 5 Digit Extension
  • Code 2 of 5
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
12 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 2844-Z Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Included Feature: Real Time Clock
  • Supports user-defined fonts and graphics, inlcuding custom logos
  • IBM Code Page 850 International Characters
  • Construction: High-impact, double-walled plastic enclosure
  • Dual Media Sensors:
  • Transmissive
  • Reflective
  • Ribbons:
  • Width (outside diameter): 1.3" to 4.3"
  • Length: 2,928"
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
System Requirements:

PC:

  • Windows 95
  • Windows 98
  • Windows NT 4.0
  • Windows 2000
  • Windows XP
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
