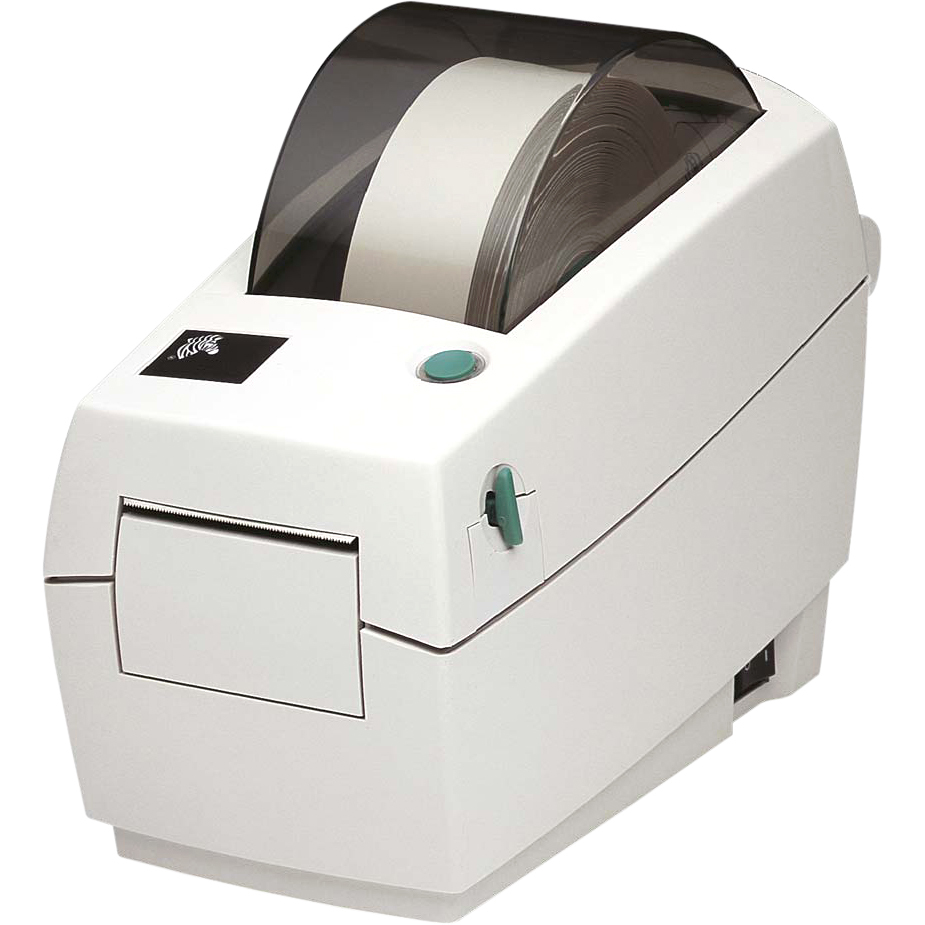

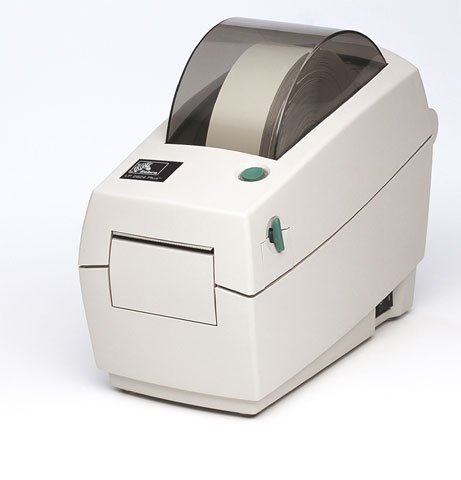

Zebra LP 2824 Plus – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: 282P-201510-040
Model: LP 2824 Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Ethernet, USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal printing, 203 dpi, 2.25" max print width, USB and Ethernet Interfaces, Real-time clock. Includes US power supply. Order cables separately.
Explore all Zebra LP 2824 Plus Barcode Label Printers
Add to Quote
Zebra 282P-201510-040 Barcode Label Printer
Zebra 282P-201510-040 Barcode Label Printer
Zebra 282P-201510-040 Barcode Label Printer
Zebra 282P-201510-040 Barcode Label Printer
Zebra 282P-201510-040 Barcode Label Printer Zebra 282P-201510-040 Barcode Label Printer Zebra 282P-201510-040 Barcode Label Printer

Full specifications (PDF)

Zebra LP 2824 Plus Barcode Label Printer Model Overview

With its competitive electronic platform and now both ZPL and EPL programming languages, the Zebra LP 2824 Plus delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Zebra 282P-201510-040 Barcode Label Printer Overview

The ultra-compact direct thermal LP 2824 Plus bar code label printer brings powerful performance to applications requiring a space-saving printer and media widths of 2.2 inches/56 mm or less. It includes a 32-bit RISC processor for faster formatting and first label out, an auto-sensing serial port, and co-resident EPL and ZPL programming languages. Available options include additional memory, 10/100 Ethernet, label peeler, and receipt/label cutter.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Codablock
  • Code 49
  • Data Matrix
  • QR Code
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
  • RSS
  • Aztec Code
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • RSS14 Limited
  • RSS14 Stacked
  • RSS14 Truncated
  • Standard 2 of 5
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC/EAN 128
  • Japan Postal
  • MSI-3
  • German Post Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Tear-off
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
68 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Gap
  • Fanfold
  • Notch
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Linerless
  • Wristband
  • Direct Thermal Label
Media Sensor:
  • Cover Open Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
4.4"
Depth:
8.5"
Weight (Approximate):
2.70 lb
Miscellaneous
Package Contents:
  • LP 2824 Plus Label Printer
  • USA Power Cord
  • English/European/Latin America/Chinese/Japanese User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Unicode
  • FCC
  • VCCI
  • C-TICK
  • UL
  • NOM
  • CE
  • IRAM
  • AAMI
  • EN55022 Class-B
  • EN61000-3-2
  • EN61000-3-3
  • EN55024
  • 1991 +A1 +A2 +A3 +A3 +A4, UL 60950
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0649040872767
UPC: 649040872767
EAN: 0649040872767
UNSPSC: 45101512
