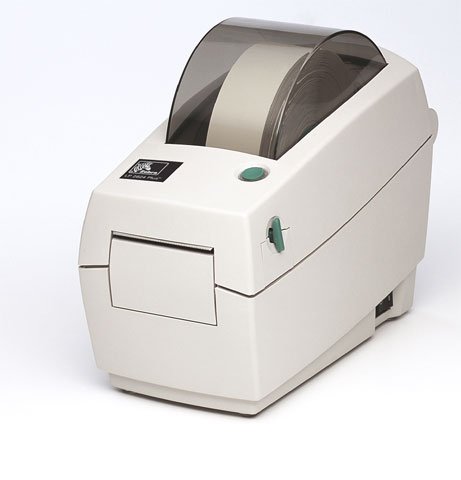

Zebra 282P-201510-000 Barcode Printer

Zebra LP 2824 Plus - Direct thermal printing, 203 dpi, 2.25" max print width, USB and Ethernet Interfaces, and US power cord. Cables sold separately.
The Zebra LP 2824 Plus: The easiest printers to load on the planet!

With its competitive electronic platform and now both ZPL and EPL programming languages, the Zebra LP 2824 Plus delivers high quality barcode label printing at 3.5 ips and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Plessey
    • POSTNET
    • RSS-14
    • Standard 2 of 5
    • UPC-A
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC/EAN 128
    • MSI-3
    • German Post Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: LP 2824 Plus
  • Product Name: LP 2824 Plus Thermal Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 4.4"
  • Depth: 8.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Form
    • Continuous Receipt
    • Die-cut Label
    • Gap
    • Fanfold
    • Linerless
    • Notch
    • Notched
    • Perforated Paper
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
  • Media Thickness: 7 mil
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • Reset feature button
    • 32 bit RISC processor
    • Auto calibration of media
    • Certified Microsoft Windows drivers
    • Odometer for printer length tracking
    • Construction: ABS double-walled casing
    • OpenACCESS design for easy media loading
    • Unicode compliant for multi-language printing

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model LP 2824 Plus
Included Features EPL2, ZPL2
Maximum Print Width 2.20
Interface Options Ethernet, USB
Printer Type Desktop
Print Resolution 203 dpi
Print Speed 4
Label Core 1 inch
Print Method Direct Thermal
Brand Zebra
Max Roll Outer Diameter 5
Max Label Width 2.36
Printer Mobility Not Mobile
