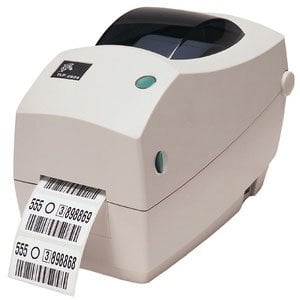

Zebra TLP 2824 Plus – Barcode Label Printer – 203 dpi, 305 dpi – Thermal Transfer

Part Number: 282P-101520-000
Model: TLP 2824 Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, USB
Print Resolution
203 dpi, 305 dpi

Product Description:

  Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Ethernet and USB interfaces. Includes EU/UK Power cord. Interface cables sold separately.
Explore all Zebra TLP 2824 Plus Barcode Label Printers
Add to Quote
Zebra 282P-101520-000 Barcode Label Printer
Zebra 282P-101520-000 Barcode Label Printer
Zebra 282P-101520-000 Barcode Label Printer
Zebra 282P-101520-000 Barcode Label Printer Zebra 282P-101520-000 Barcode Label Printer

Full specifications (PDF)

Zebra TLP 2824 Plus Barcode Label Printer Model Overview

Zebra's LP/TLP 2824 Plus powerful, ultra compact desktop printer is easy-to-use and reliable for space-constrained areas. The 2824 includes Zebra Setup Utilities, which guides you through simple setup steps so you can get up and running quickly. It also includes OpenACCESS design and clear media window for simple media loading and monitoring. The 2824 can be used in a variety of printing applications, including retail, healthcare, manufacturing, security, and travel & hospitality. For greater flexibility, choose from a variety of options like convenient peeler and cutter, and 64 MB Flash memory that lets you store and use more graphics and fonts. The 2824 Plus works seamlessly with other Zebra printers, while serial/parallel/USB connectivity and optional 10/100 Ethernet allow easy system integration.
Zebra 282P-101520-000 Barcode Label Printer Overview

Ideal for applications requiring an easy-to-use, reliable printer for space-constrained areas, the TLP2824 Plus can be used in a variety of printing applications. One of the smallest in its class, Zebra's 2" print width printers tuck into the tightest work spaces and print labels, receipts or wristbands with best-in-class print speeds. The TLP 2824 Plus thermal transfer printer is an easy-to-use and cost effective solution for printing 2.2 inch-wide (56mm) long life, thermal transfer labels. Key applications include: narrow-label applications, pharmacy and healthcare labeling, retail inventory and product labeling, and wristband printing.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39"
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • RSS-14
  • Standard 2 of 5
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • EAN-14
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC/EAN 128
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • MSI-3
  • German Post Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Tear-off
  • Auto-calibration
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Form
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notch
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Wristband
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Cover Open Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL2
  • EPL
  • ZPL II
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
41°F (5°C) - 105.8°F (41°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
7"
Width:
5.3"
Depth:
9.5"
Weight (Approximate):
3.50 lb
Miscellaneous
Power Cable Localization:
  • EU
  • UK
Additional Information:
  • Reset feature button
  • Auto calibration of media
  • Construction: ABS double-walled casing
  • Odometer for printer length tracking
  • Unicode compliant for multi-language printing
  • OpenACCESS design for easy media loading
  • 32 bit RISC processor for high throughput
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 5052217130631, 5711045556753
EAN: 5052217130631, 5711045556753
UNSPSC: 43212108
