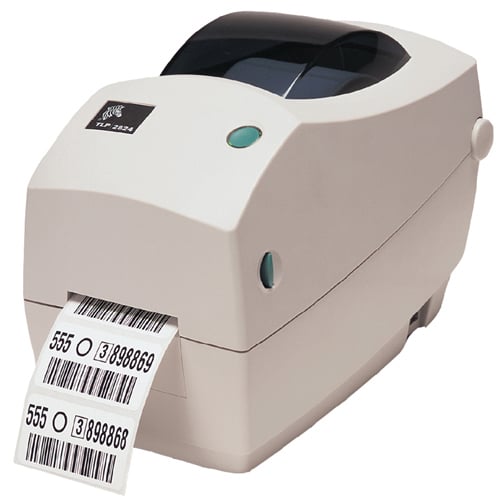

Zebra TLP 2824 Plus – Barcode Label Printer – 203 dpi

Part Number: 282P-101120-000
Model: TLP 2824 Plus
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
2.25 inch

Product Description:

  Desktop Printer, Zebra TLP 2824 Plus, Thermal Transfer, 203 dpi, 4ips, USB/Serial, EPL/ZPL, Includes EU/UK Power Cords
Explore all Zebra TLP 2824 Plus Barcode Label Printers
Add to Quote
Zebra 282P-101120-000 Barcode Label Printer
Zebra 282P-101120-000 Barcode Label Printer
Zebra 282P-101120-000 Barcode Label Printer
Zebra 282P-101120-000 Barcode Label Printer Zebra 282P-101120-000 Barcode Label Printer

Full specifications (PDF)

Zebra TLP 2824 Plus Barcode Label Printer Model Overview

Zebra's LP/TLP 2824 Plus powerful, ultra compact desktop printer is easy-to-use and reliable for space-constrained areas. The 2824 includes Zebra Setup Utilities, which guides you through simple setup steps so you can get up and running quickly. It also includes OpenACCESS design and clear media window for simple media loading and monitoring. The 2824 can be used in a variety of printing applications, including retail, healthcare, manufacturing, security, and travel & hospitality. For greater flexibility, choose from a variety of options like convenient peeler and cutter, and 64 MB Flash memory that lets you store and use more graphics and fonts. The 2824 Plus works seamlessly with other Zebra printers, while serial/parallel/USB connectivity and optional 10/100 Ethernet allow easy system integration.
Zebra 282P-101120-000 Barcode Label Printer Overview

Ideal for applications requiring an easy-to-use, reliable printer for space-constrained areas, the TLP2824 Plus can be used in a variety of printing applications. One of the smallest in its class, Zebra's 2" print width printers tuck into the tightest work spaces and print labels, receipts or wristbands with best-in-class print speeds. The TLP 2824 Plus thermal transfer printer is an easy-to-use and cost effective solution for printing 2.2 inch-wide (56mm) long life, thermal transfer labels. Key applications include: narrow-label applications, pharmacy and healthcare labeling, retail inventory and product labeling, and wristband printing.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39"
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • RSS-14
  • Standard 2 of 5
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • EAN-14
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC/EAN 128
  • MSI-3
  • German Post Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • Aztec Code
  • BC412
Application/Usage:
Desktop
Features:
Tear-off
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Form
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notch
  • Notched
  • Perforated Paper
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Cover Open Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • EPL2
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
220 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 105.8°F (41°C)
Operating Relative Humidity:
10% - 90%
Physical Characteristics
Height:
7"
Width:
5.3"
Depth:
9.5"
Weight (Approximate):
3.50 lb
Miscellaneous
Additional Information:
  • Reset feature button
  • Auto calibration of media
  • Certified Microsoft Windows drivers
  • Odometer for printer length tracking
  • Construction: ABS double-walled casing
  • Unicode compliant for multi-language printing
  • 32 bit RISC processor for high throughput
  • OpenACCESS design for easy media loading
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 3609740074752, 5052217010797, 5712505428924
EAN: 3609740074752, 5052217010797, 5712505428924
UNSPSC: 43212108
