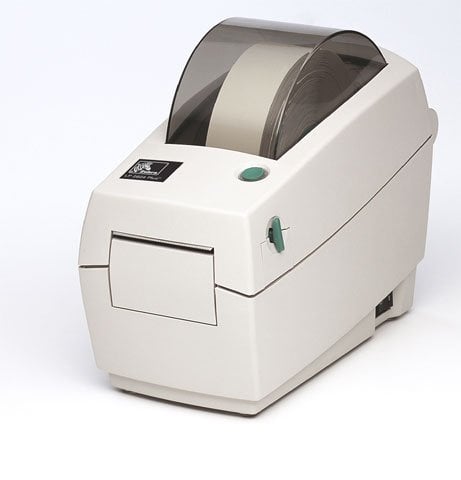

Zebra 2824-21400-0011 Barcode Printer
Zebra LP 2824 -
Direct thermal Desktop Printer (203 dpi, Serial and PrintServer II Interfaces, 256K SRAM, 1MB Flash and No Real-time clock)
Share:
The Zebra LP 2824: The easiest printers to load on the planet!
With its competitive electronic platform, the Zebra LP 2824 delivers high quality barcode label printing at 3.5 ips and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Technical Information
- Print Method:
- Direct Thermal
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 4 ips
- Interfaces:
- 1 x Serial
- 1 x Ethernet
- Maximum Print Width: 2.2"
- Maximum Label Width: 2.36"
- Maximum Label Length: 11"
- Media Sensor:
- Reflective
- Transmissive
- Printer Language: ZPL II
- Input Voltage Range: 100 to 240 V AC - USA & European
- Power Supply: External
- RAM Memory: 256KB
- Flash Memory: 1MB
- Mobile Printer: No
General Information
- Manufacturer:
- Product Name: LP 2824 Label Printer
Physical Characteristics
- Dimensions:
- 6.8" (172.72mm) x 3.6" (91.44mm) x 7.5" (190mm)
- 6.8" (172.72mm) x 3.6" (91.44mm) x x 7.5" (190mm)
- Weight: 2.7 lb (1.22 kg)
- Shipping Weight: 5.3lb (2.4kg)
Included Features
- Included Features: Internal ZebraNet PrintServer II
Agency Approvals
- Agency Approvals:
- UL
- FCC
- C-TICK
- CCC
- SRRC
- NOM
- CSA
- CE
- VCCI
- PSE
- GOST-R
Environmental Conditions
- Temperature:
- 40°F (4°C) to 105°F (41°C) Operating
- -40°F (-40°C) to 140°F (60°C) Storage
- Humidity:
- 10 to 90% Operating Non-condensing
- 5 to 95% Storage Non-condensing
Other
- Package Contents:
- LP 2824 Label Printer
- User Documentation: English/European/Latin America
Media Characteristics
- Maximum Label Roll Diameter: 5"
- Label Core Size: 1.5"
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
Full specifications (PDF)| Brand | Zebra |
| Model | LP 2824 |
| Max Roll Outer Diameter | 5 |
| Print Resolution | 203 dpi |
| Interface Options | Serial |
| Printer Type | Desktop |
| Max Label Width | 2.40 |
| Maximum Print Width | 2.20, 2.25 |
| Included Features | Real-time clock |
| Label Core | 1 inch |
| Print Speed | 3.5 |
| Print Method | Direct Thermal |
| Printer Mobility | Not Mobile |
