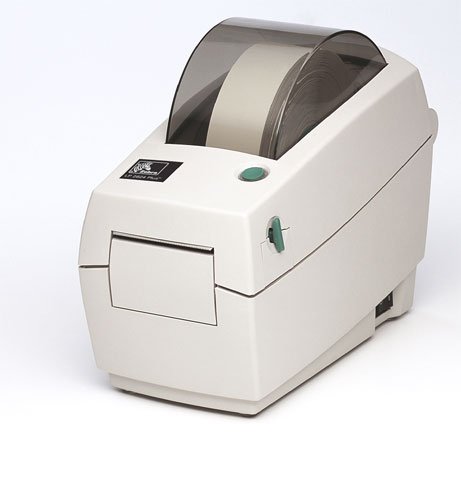

Zebra 2824-21400-0001 Barcode Label Printer

The Zebra 2824-21400-0001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra LP 2824 - Direct thermal, 203 dpi, 4 ips, 2" print width, serial and PrintServerII interfaces, 128KB RAM, 512KB flash and no real time clock. Includes U.S. power supply & product reference guide. Order cables separately. See accessories. For serial, please see 9-9 cable, (Part# 2901-9MF9ST).
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
2.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 x 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 2.36" maximum label width for dependable, desired results
  • 11" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for better reliance and maximum usability
  • Comes with 128 KB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra LP 2824 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 2824-21400-0001 Barcode Label Printer
Zebra 2824-21400-0001 Barcode Label Printer Zebra 2824-21400-0001 Barcode Label Printer Zebra 2824-21400-0001 Barcode Label Printer
Zebra 2824-21400-0001 Barcode Label Printer
Zebra 2824-21400-0001 Barcode Label Printer

Full specifications (PDF)
Zebra LP 2824 Barcode Label Printer Model Overview
With its competitive electronic platform, the Zebra LP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Zebra 2824-21400-0001 Barcode Label Printer Overview

The direct thermal LP 2824 bar code label printer excels in delivering printing solutions for business and professional offices, including retail point of sale, shelf labeling, product marking, healthcare specimen labeling and patient tracking, inventory and asset management, small office or home office mailing, shipping, and file folder labeling.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Code 39
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • UPC-A with 2 and 5 Add-on
  • EAN-13
  • EAN-8
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • MSI-3
  • Maxi Code
  • Micro PDF-417
  • Macro PDF-417
  • Data Matrix
  • RSS-14
  • Code 93
Memory
Standard Memory:
128 KB
Flash Memory:
512 KB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Tag Stock
  • Continuous Receipt
  • Linerless
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
11"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
3.6"
Depth:
7.5"
Miscellaneous
Package Contents:
  • LP 2824 Label Printer
  • User Documentation: English, European, Latin America
Additional Information:
  • Core diameter: 1" (25.4 mm) or 1.5" (38 mm)
  • Media thickness: 0.003" (.075 mm) to 0.007" (0.18 mm)
  • Maximum label and liner length (optional): 22" (558 mm)
  • Print Length:
  • 11" (279 mm) with standard memory
  • 22" (584 mm) with expanded memory
  • Media sensors:
  • Transmissive
  • Reflective
  • Fonts and Graphics:
  • Standard Fonts: 5 bitmapped, expandable 8x
  • Soft font storage in Flash memory
  • DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
  • Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
Platform Supported:
PC
Certifications & Standards:
  • UL-CUL
  • FCC
  • VCCI
  • CB
  • CE
  • C-TICK
  • CCC/SRRC
  • NOM
  • IRAM
  • BSMI
  • CSA
  • VCCI/PSE
  • GOST-R
Item Numbers
GTIN: 0732387102984
UPC: 732387102984
EAN: 0732387102984
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 2824-21400-0001 Barcode Label Printer is also known as ZEB-2824214000001 or 2824214000001.
