Zebra 2824-21201-0001 Barcode Label Printer

Zebra 282P-201210-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra 282P-201210-000 Barcode Label Printer.
Zebra LP 2824 - Direct thermal, 203 dpi, 4 ips, 2" print width, parallel interface, 128KB RAM, 512KB flash. Includes U.S. power supply, product reference guide, & dispenser. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Parallel
Print Resolution
203 dpi
Max Print Width
2.5 inch
  • A smart and inexpensive solution to print temporary documents
  • 203 x 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 2.36" maximum label width to easily accommodate your needs with added productivity
  • 11" maximum label length for dependable, desired results
  • Supports roll fed media type for maximum feasibility and better accommodation of your requirements
  • Dispenser feature for maximum efficiency and convenience
  • Comes with 128 KB standard memory to ensure maximum efficiency with great quality printing results
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

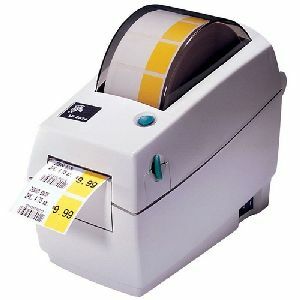

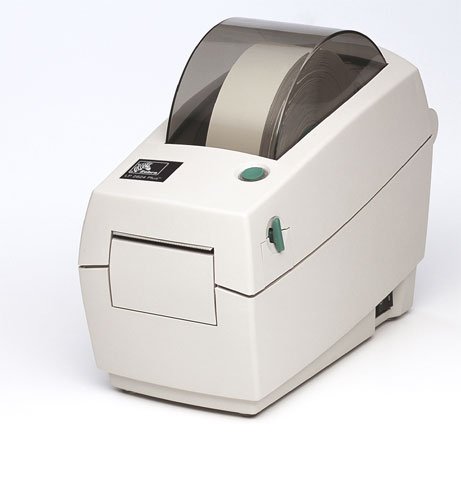

Zebra LP 2824 Barcode Label Printer Model Overview
With its competitive electronic platform, the Zebra LP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Zebra 2824-21201-0001 Barcode Label Printer Overview

The direct thermal LP 2824 bar code label printer excels in delivering printing solutions for business and professional offices, including retail point of sale, shelf labeling, product marking, healthcare specimen labeling and patient tracking, inventory and asset management, small office or home office mailing, shipping, and file folder labeling.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Code 39
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • UPC-A with 2 and 5 Add-on
  • EAN-13
  • EAN-8
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • MSI-3
  • Maxi Code
  • Micro PDF-417
  • Macro PDF-417
  • Data Matrix
  • RSS-14
  • Code 93
Features:
Dispenser
Memory
Standard Memory:
128 KB
Flash Memory:
512 KB
Interfaces/Ports
Parallel Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Tag Stock
  • Continuous Receipt
  • Linerless
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.09 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
11"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
6.8"
Width:
3.6"
Depth:
7.5"
Miscellaneous
Package Contents:
  • LP 2824 Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Core diameter: 1" (25.4 mm) or 1.5" (38 mm)
  • Media thickness: 0.003" (.075 mm) to 0.007" (0.18 mm)
  • Maximum label and liner length (optional): 22" (558 mm)
  • Print Length:
  • 11" (279 mm) with standard memory
  • 22" (584 mm) with expanded memory
  • Media sensors:
  • Transmissive
  • Reflective
  • Fonts and Graphics:
  • Standard Fonts: 5 bitmapped, expandable 8x
  • Soft font storage in Flash memory
  • DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
  • Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL-CUL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
  • CB
Item Numbers
GTIN: 0853585470290
UPC: 853585470290
EAN: 0853585470290
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 2824-21201-0001 Barcode Label Printer is also known as ELT-2824-21201-0001 or 2824212010001.
