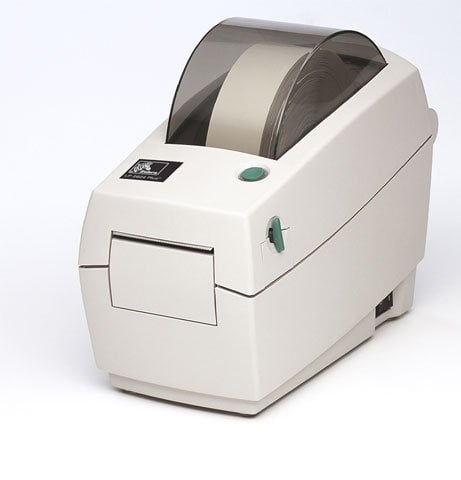

Zebra 2824-21103-0001 Barcode Label Printer

The Zebra 2824-21103-0001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra LP 2824 - Direct thermal, 203 dpi, 4 ips, 2" print width, serial and USB interfaces, 128KB RAM, 512KB flash, EPL2, Liner-Free and no real time clock. Includes U.S. power supply & product reference guide. Order cables separately. See accessories. SPECIAL ORDER ITEM, Please call for details. For serial, please see 9-9 cable, (Part# 2901-9MF9ST).
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
2.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Enjoy maximum efficiency with label print printing
  • 2.36" maximum label width to easily accommodate your needs with added productivity
  • 11" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for better reliance and maximum usability
  • Comes with 128 KB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra LP 2824 Barcode Label Printers

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Zebra 2824-21103-0001 Barcode Label Printer
Zebra 2824-21103-0001 Barcode Label Printer
Zebra 2824-21103-0001 Barcode Label Printer
Zebra 2824-21103-0001 Barcode Label Printer Zebra 2824-21103-0001 Barcode Label Printer

Full specifications (PDF)
Zebra LP 2824 Barcode Label Printer Model Overview
With its competitive electronic platform, the Zebra LP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Zebra 2824-21103-0001 Barcode Label Printer Overview

At 2.2" , the direct thermal LP 2824 bar code label printer is ideal for retail and other label applications. The LP 2824 redefines the compact printer class. It fits into areas other printers cannot, withstanding rough handling and integrating easily into a wide range of applications. The LP 2824 excels in delivering printing solutions for business and professional offices, including retail point of sale, shelf labeling, product marking, health care specimen labeling and patient tracking, inventory and asset management, small office or home office mailing, shipping, and file folder labeling.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Code 39
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC/EAN 128
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN-13
  • EAN-8
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • RSS14 Limited
  • MSI-3
  • MSI1
  • PDF-417
  • Macro PDF-417
  • Micro PDF-417
  • QR Code
  • Data Matrix
  • Maxi Code Mode 2
  • Maxi Code Mode 3
  • Maxi Code Mode 4
  • Maxi Code Mode 6
  • RSS14 Truncated
  • RSS14 Stacked
Memory
Standard Memory:
128 KB
Flash Memory:
512 KB
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Tag Stock
  • Continuous Receipt
  • Linerless
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
11"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
3.6"
Depth:
7.5"
Miscellaneous
Package Contents:
  • LP 2824 Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • User Documentation: English/European/Latin America
  • Printer Font Set: USA and European (standard)
  • Power: USA and European
  • No Real Time Clock
Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC
  • VCCI
  • C-TICK
  • CCC
  • SRRC
  • NOM
  • CSA
  • CE
  • VCCI
  • PSE
  • GOST-R
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 2824-21103-0001 Barcode Label Printer is also known as ELT-2824211030001 or 2824211030001.
