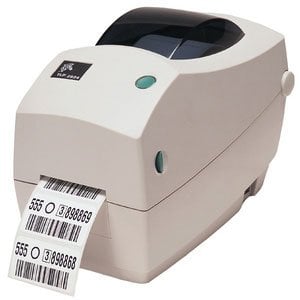

Zebra TLP 2824 – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter
Part Number:
2824-11402-0001
Request a Bulk Pricing Quote
Chat with a Product Expert
Zebra TLP 2824 Barcode Label Printer Model Overview
With its competitive electronic platform, the Zebra TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.
Zebra 2824-11402-0001 Barcode Label Printer Overview
The direct thermal and thermal transfer TLP 2824 Label Printer is ideal for retail and other label applications. The TLP 2824 Label Printer redefines the compact printer class. It fits into areas other printers cannot, withstanding rough handling and integrating easily into a wide range of applications. A 5" media roll capacity and clear media window optimize productivity, while a maximum print speed of 4" per second enables fast job processing.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
Code 39 Code 128-A Code 128-B Code 128-C Code 93 Codabar Interleaved 2 of 5 UPC-A UPC-E UPC-A with 2 or 5 Digit Extension EAN-13 EAN-8 EAN-13 With 2 or 5 Digit Extension EAN-8 With 2 or 5 Digit Extension POSTNET Japan Postal Plessey RSS-14 German Post Code MSI-3 Maxi Code Micro PDF-417 Macro PDF-417 QR Code Data Matrix
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Interfaces/Ports
Network & Communication
Ethernet Technology:
Ethernet
Cutter
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Fanfold Roll Fed Die-cut Label Continuous Form Tag Stock Continuous Receipt
Media Size:
2.35" x 11" - Roll Paper 2.35"
Media Sensor:
Reflective Media Sensor Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
2.36"
Maximum Label Length:
11"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Physical Characteristics
Miscellaneous
Package Contents:
TLP 2824 Label Printer User Documentation: English, European, Latin America
Additional Information:
Head-up sensor No Real Time Clock OpenACCESS design Power: USA and Europe Soft font storage in Flash memory Printer Font Set: USA and European (standard) User Documentation: English/European/Latin America Media Sensors:
Certifications & Standards:
UL-CUL FCC VCCI CB CE C-TICK CCC/SRRC NOM IRAM BSMI CSA VCCI/PSE GOST-R
Warranty
Item Numbers
