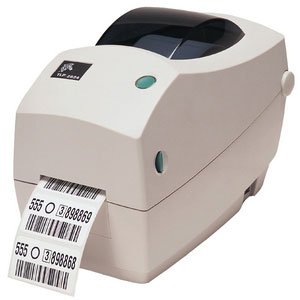

Zebra 2824-11400-0001 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra 282P-101510-000 Barcode Label Printer.

Zebra TLP 2824 - Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Serial and Ethernet Interfaces. Includes US power supply. Order cables separately.

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232)

Print Resolution

203 dpi

Max Print Width

2.5 inch

Ribbon Core Size

0.5 inch

Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
203 x 203 maximum print resolution (dpi) offers great dependability with added efficiency
The printer is capable of printing sharp and detailed monochrome documents quickly
Enjoy maximum efficiency with label print printing
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
2.36" maximum label width for dependable, desired results
11" maximum label length to easily accommodate your needs with added productivity
Supports fanfold media type for better reliance and maximum usability
Comes with 128 KB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
2.36" x Roll Paper media size for dependable, efficient results with maximum productivity

Need a different version? See all Zebra TLP 2824 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra 2824-11400-0001 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra TLP 2824 Barcode Label Printer Model Overview

With its competitive electronic platform, the Zebra TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Zebra 2824-11400-0001 Barcode Label Printer Overview

The TLP 2824 excels in delivering printing solutions for business and professional offices, including retail point of sale, shelf labeling, product marking, healthcare specimen labeling and patient tracking, inventory and asset management, small office or home office mailing, shipping, and file folder labeling.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203 x 203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 128-A
Code 128-B
Code 128-C
Code 93
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
EAN-13
EAN-8
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
POSTNET
Japan Postal
Plessey
RSS-14
German Post Code
MSI-3
Maxi Code
Micro PDF-417
Macro PDF-417
QR Code
Data Matrix

Memory

Standard Memory:

128 KB

Flash Memory:

512 KB

Interfaces/Ports

Serial Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Fanfold
Roll Fed
Die-cut Label
Continuous Form
Tag Stock
Continuous Receipt

Media Size:

2.36" x Roll Paper

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

7 mil

Maximum Roll Diameter:

Maximum Label Width:

2.36"

Maximum Label Length:

11"

Label Core Size:

1.50"

Ribbon Core Size:

0.50"

Fonts & Emulation

Language Emulation:

EPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Frequency:

60 Hz

Physical Characteristics

Height:

Width:

5.5"

Depth:

9.5"

Miscellaneous

Package Contents:

TLP 2824 Label Printer
User Documentation: English/European/Latin America

Additional Information:

Construction: ABS double-walled casing
OpenACCESS design
Head-up sensor
Media Thickness from 0.003" to 0.007"
Soft font storage in Flash memory
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
Maximum label and liner length (optional) 22"

Media sensors:
