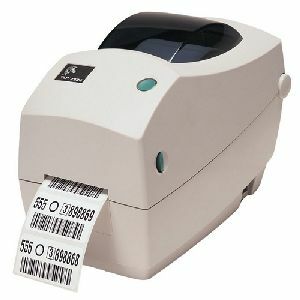

Zebra 2824-11202-0001 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra 282P-101212-000 Barcode Label Printer.

Zebra TLP 2824 - Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Parallel Interface, Cutter. Includes US power supply. Order cables separately.

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Parallel

Print Resolution

203 dpi

Max Print Width

2.5 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
203 maximum print resolution (dpi) offers great dependability with added efficiency
Enjoy the optimal performance in today's on-demand labeling applications
2.36" maximum label width for your convenience and feasible usability
11" maximum label length for dependable, desired results
Supports fanfold media type for better reliance and maximum usability
Comes with 128 KB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance

Need a different version? See all Zebra TLP 2824 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra 2824-11202-0001 Barcode Label Printer

Overview

Full specifications (PDF)

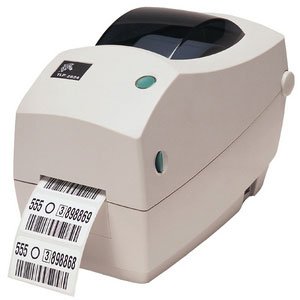

Zebra TLP 2824 Barcode Label Printer Model Overview

With its competitive electronic platform, the Zebra TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Zebra 2824-11202-0001 Barcode Label Printer Overview

The direct thermal and thermal transfer TLP 2824P Label Printer is ideal for retail and other label applications. The TLP 2824P Label Printer redefines the compact printer class. It fits into areas other printers cannot, withstanding rough handling and integrating easily into a wide range of applications. A 5" media roll capacity and clear media window optimize productivity, while a maximum print speed of 4" per second enables fast job processing.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 128-A
Code 128-B
Code 128-C
Code 93
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
EAN-13
EAN-8
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
POSTNET
Japan Postal
Plessey
RSS-14
German Post Code
MSI-3
Maxi Code
Micro PDF-417
Macro PDF-417
QR Code
Data Matrix

Memory

Standard Memory:

128 KB

Flash Memory:

512 KB

Interfaces/Ports

Parallel Port:

Yes

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Fanfold
Roll Fed
Die-cut Label
Continuous Form
Tag Stock
Continuous Receipt

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

2.36"

Maximum Label Length:

11"

Label Core Size:

1.50"

Ribbon Core Size:

0.50"

Fonts & Emulation

Language Emulation:

EPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

Width:

5.5"

Depth:

9.5"

Miscellaneous

Package Contents:

TLP 2824P Label Printer
User Documentation: English, European, Latin America

Additional Information:

Printer Font Set: USA and European (standard)
No Real Time Clock
User Documentation: English/European/Latin America
Construction: ABS double-walled casing
OpenACCESS design
Head-up sensor
Soft font storage in Flash memory

Media sensors:

Transmissive
Reflective

Platform Supported:

Certifications & Standards:

UL-CUL
FCC
VCCI
CB
CE
C-TICK
CCC/SRRC
NOM
IRAM
BSMI
CSA
VCCI/PSE
GOST-R

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 2824-11202-0001 Barcode Label Printer is also known as ELT-2824112020001 or 2824112020001.
