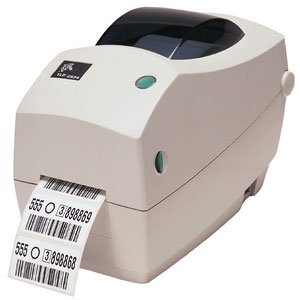

Zebra 2824-11200-0001 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra 282P-101210-000 Barcode Label Printer.

Zebra TLP 2824 - Direct Thermal/Thermal Transfer printing, 203 dpi, 2.25" print width, Parallel Interface. Includes US power supply. Order cables separately.

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Parallel

Print Resolution

203 dpi

Max Print Width

2.5 inch

Ribbon Core Size

0.5 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
203 x 203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Delivers high-speed, hassle-free labeling solution for your business needs
Save time and money for your business by using one printer for all your employees
2.36" maximum label width for your convenience and feasible usability
11" maximum label length for dependable, desired results
Supports fanfold media type for better reliance and maximum usability
Comes with 128 KB standard memory for timely printing with added reliability
2.36" x Roll Paper media size for better reliance and maximum usability

Need a different version? See all Zebra TLP 2824 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra 2824-11200-0001 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra TLP 2824 Barcode Label Printer Model Overview

With its competitive electronic platform, the Zebra TLP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Zebra 2824-11200-0001 Barcode Label Printer Overview

With one of the smallest footprints of any two-inch desktop printer in the industry, the TLP 2824 fit into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops.

For easy integration with existing systems and a variety of applications, the TLP 2824 printers also offer the widest range of interface choices, including serial, parallel, USB, internal, or external Ethernet with the ZebraNet PrintServer II option. Their sturdy, dual-wall, high-density plastic construction ensure they will survive punishment that would damage other printers in their class. A full five-inch media roll is easily loaded into the TLP 2824 printers thanks to the OpenACCESS design, and media usage can be monitored through the clear top cover.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203 x 203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 128-A
Code 128-B
Code 128-C
Code 93
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
EAN-13
EAN-8
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
POSTNET
Japan Postal
Plessey
RSS-14
German Post Code
MSI-3
Maxi Code
Micro PDF-417
Macro PDF-417
QR Code
Data Matrix

Memory

Standard Memory:

128 KB

Flash Memory:

512 KB

Interfaces/Ports

Parallel Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Fanfold
Roll Fed
Die-cut Label
Continuous Form
Tag Stock
Continuous Receipt

Media Size:

2.36" x Roll Paper

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

7 mil

Maximum Roll Diameter:

Maximum Label Width:

2.36"

Maximum Label Length:

11"

Label Core Size:

1.50"

Fonts & Emulation

Language Emulation:

EPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Frequency:

60 Hz

Physical Characteristics

Height:

Width:

5.1"

Depth:

9.3"

Miscellaneous

Package Contents:

TLP 2824 Label Printer
User Documentation: English, European, Latin America

Additional Information:

Construction: ABS double-walled casing
OpenACCESS design
Head-up sensor
Media Thickness from 0.003" to 0.007"
Soft font storage in Flash memory
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
Maximum label and liner length (optional) 22"

Media sensors:
