Zebra 2824-11102-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

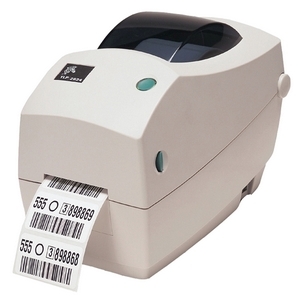

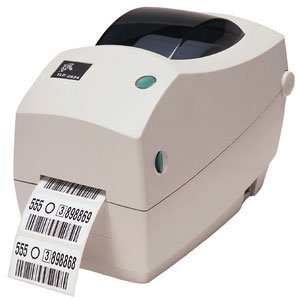

Zebra TLP 2824 - Thermal transfer printing, 203 dpi, 2.25" print width, Serial and USB Interfaces, Cutter. Includes US power supply. Order cables separately.
The Zebra TLP 2824: The easiest printers to load on the planet!

With its competitive electronic platform, the Zebra TLP 2824 delivers high quality barcode label printing at 3.5 ips and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • Power Supply: External
  • RAM Memory: 128KB
  • Flash Memory: 512KB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 5.5" (139.7mm) x 9.5" (241mm)
    • 7" (177.8mm) x 5.5" (139.7mm) x x 9.5" (241mm)
  • Weight: 3.5 lb (1.59 kg)
  • Shipping Weight: 6.1lb (2.77kg)

Included Features

  • Included Features: Cutter

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI/PSE
    • C-Tick
    • CB
    • CE
    • CCC/SRRC
    • NOM
    • IRAM
    • BSMI
    • GOST-R
    • CSA

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating
    • 5 to 95% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 2824 Label Printer
    • User Documentation: English/European/Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model TLP 2824
Print Resolution 203 dpi
Interface Options Serial, USB
Printer Type Desktop
Maximum Print Width 2.25, 2.20
Max Roll Outer Diameter 5
Included Features Cutter, Real-time clock
Print Speed 3.5
Print Method Thermal Transfer
Max Label Width 2.40
Label Core 1 inch
Printer Mobility Not Mobile
Ribbon Core 0.5
