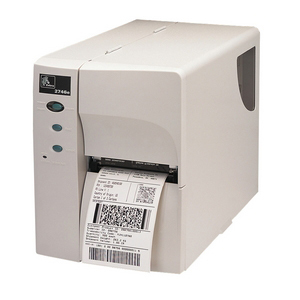

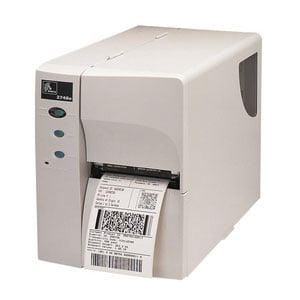

Zebra 274E-10411-0010 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra 2746e - Thermal transfer, 203 dpi, 4" print width, RS-232/USB/Ethernet interfaces. Includes US power cable. Interface cables sold separately.
Entry level, durable metal printer

The steel-enclosed 2746e represents an affordable, basic barcode print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial, parallel, new USB, and internal Ethernet option), upgraded electronics, improved ribbon spindle design, additional memory, and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746e's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing/distribution, air freight/parcel tracking, manufacturing, and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable, full-size, easy-to-use, 4 inch (101.6 mm) printer.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 22"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 1MB

General Information

  • Manufacturer: Zebra
  • Product Name: 2746e Label Printer

Physical Characteristics

  • Dimensions: 12.38" (314.45mm) x 9.5" (241.3mm) x 16.75" (425mm)
  • Weight: 28.6 lb (12.97 kg)
  • Shipping Weight: 36lb (16.33kg)

Included Features

  • Included Features:
    • Label Dispenser
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • FCC
    • UL
    • CE
    • VCCI
    • CB
    • C-Tic
    • EN55022
    • CISPR22B
    • EN50082-1
    • EN60950
    • IEC 950

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • 2746e Label Printer
    • US Power Cord
    • English/US Documentation

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 2746e
Interface Options Ethernet, USB, Serial
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 6
Printer Type Industrial
Maximum Print Width 4.09
Label Core 1 inch
Max Label Width 4.10
Max Roll Outer Diameter 8
Printer Mobility Not Mobile
