Zebra 274E-10311-0030 Barcode Label Printer

The Zebra 274E-10311-0030 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 2746e - Direct Thermal/Thermal Transfer printing, 203 dpi, 4" print width, Parallel/Serial/USB interfaces. Includes US power cord. Interface cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Real-Time Clock
Max Print Width
4 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy maximum efficiency with label print printing
  • 4.50" maximum label width to easily accommodate your needs with added productivity
  • 22" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for dependable, efficient results with maximum productivity
  • Label Dispenser feature for maximum productivity with added dependability
  • Comes with 512 KB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • 4.49" x Roll Paper media size for dependable, efficient results with maximum productivity
Read More

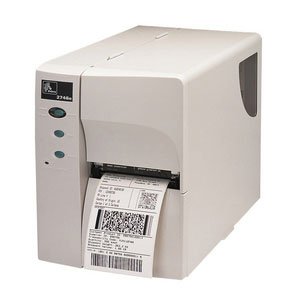

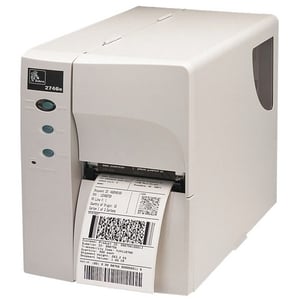

Zebra 2746e Barcode Label Printer Model Overview
The steel-enclosed 2746e represents an affordable, basic barcode print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial, parallel, new USB, and internal Ethernet option), upgraded electronics, improved ribbon spindle design, additional memory, and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746e's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing/distribution, air freight/parcel tracking, manufacturing, and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable, full-size, easy-to-use, 4 inch (101.6 mm) printer.
Zebra 274E-10311-0030 Barcode Label Printer Overview

2746e Label Printer provides an affordable, basic bar code print solution for light-industrial companies new to bar coding. The sturdy, steel-enclosed design means this printer fits well into an industrial environment. The 2746e is ideal for a range of applications in warehousing and distribution, air freight, manufacturing, and general office environments. Able to print individual labels or full-roll batches, it handily meets the printing needs of small to medium-sized businesses, such as shipping and receiving logistics and inventory control, asset tracking, bulk mailing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128-A
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • German Post Code
  • Interleaved 2 of 5
  • POSTNET
  • Standard 2 of 5
  • EAN 128
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • UPC Container Code
  • Maxi Code
  • PDF-417
  • QR Code
Features:
Label Dispenser
Memory
Standard Memory:
512 KB
Flash Memory:
1 MB
Media Types & Handling
Media Type:
  • Roll Fed
  • Continuous Form
  • Fanfold
  • Tag
  • Ticket
  • Die-cut Label
  • Black Mark
Media Size:
4.49" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
22"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
EPL II
Software
Software Included:

BAR-ONE Label Design Software

Power Description
Input Voltage:
110 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
12.4"
Width:
9.5"
Depth:
16.8"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • 2746e Label Printer
  • US Power Cord
  • User Documentation: English/US
Cables Included:
AC
Additional Information:
  • Real Time Clock
  • Clear media window
  • Printer life odometer and printhead replacement control feature
  • Transmissive and reflective media sensors
  • Rear feed slot for fan fold or oversized roll label stock
  • Label present sensor for Peel Mode
  • Media sensor for black marks, see through, die-cut labels and label out
  • Media thickness: 0.08 mm to 0.25 mm
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • UL
  • CE
  • VCCI
  • CB
  • C-Tic
  • EN55022
  • CISPR22B
  • EN50082-1
  • EN60950
  • IEC 950
System Requirements:

Operating Systems:

  • Microsoft Windows 95
  • Microsoft Windows 3.xx
  • Microsoft Windows NT 3.51
  • Microsoft Windows NT 4.0
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 274E-10311-0030 Barcode Label Printer is also known as ZEB-274E103110030 or 274E103110030.
