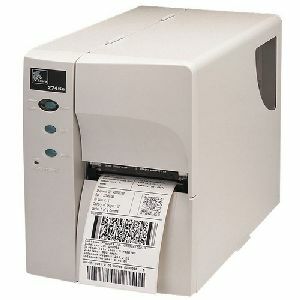

Zebra 274E-10311-0010 Barcode Label Printer

Zebra S4M00-2001-0100T Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra S4M00-2001-0100T Barcode Label Printer.
Zebra 2746e - Direct Thermal/Thermal Transfer printing, 203 dpi, 4" print width, Parallel/Serial/USB interfaces. Includes US power cord. Interface cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • 4.5 maximum label width for dependable, desired results
  • 1.12" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for better reliance and maximum usability
  • Comes with 512 KB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • 4.49" x Roll Paper media size for dependable, efficient results with maximum productivity
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

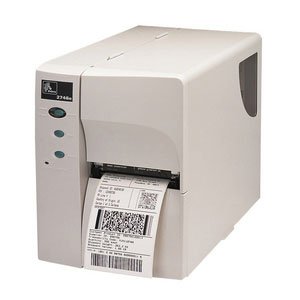

Zebra 2746e Barcode Label Printer Model Overview
The steel-enclosed 2746e represents an affordable, basic barcode print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial, parallel, new USB, and internal Ethernet option), upgraded electronics, improved ribbon spindle design, additional memory, and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746e's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing/distribution, air freight/parcel tracking, manufacturing, and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable, full-size, easy-to-use, 4 inch (101.6 mm) printer.
Zebra 274E-10311-0010 Barcode Label Printer Overview

The steel-enclosed 2746e represents an affordable, basic bar code print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial, parallel, new USB, and internal Ethernet option), upgraded electronics, improved ribbon spindle design, additional memory, and intelligent built-in media tracking capabilities that provide additional value and reliability.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128-A
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • German Post Code
  • Interleaved 2 of 5
  • POSTNET
  • Standard 2 of 5
  • EAN 128
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • UPC Container Code
  • Maxi Code
  • PDF-417
  • QR Code
Rewinder:
Yes
Memory
Standard Memory:
512 KB
Flash Memory:
1 MB
Media Types & Handling
Media Type:
  • Roll Fed
  • Continuous Form
  • Fanfold
  • Tag
  • Ticket
  • Die-cut Label
  • Black Mark
Media Size:
4.49" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.5
Maximum Label Length:
1.12"
Label Core Size:
1"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
EPL II
Software
Software Included:

BAR-ONE Label Design Software

Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
12.4"
Width:
9.5"
Depth:
16.8"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • 2746e Label Printer
  • US Power Cord
  • User Documentation: English/US
Cables Included:
AC
Additional Information:
  • Clear media window
  • Printer life odometer and printhead replacement control feature
  • Transmissive and reflective media sensors
  • Rear feed slot for fan fold or oversized roll label stock
  • Label present sensor for Peel Mode
  • Media sensor for black marks, see through, die-cut labels and label out
  • Media thickness: 0.08 mm to 0.25 mm
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • UL
  • CE
  • VCCI
  • CB
  • C-Tic
  • EN55022
  • CISPR22B
  • EN50082-1
  • EN60950
  • IEC 950
System Requirements:

Operating Systems:

  • Microsoft Windows 95
  • Microsoft Windows 3.xx
  • Microsoft Windows NT 3.51
  • Microsoft Windows NT 4.0
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 274E-10311-0010 Barcode Label Printer is also known as ELT-274E-10311-0010 or 274E103110010.
