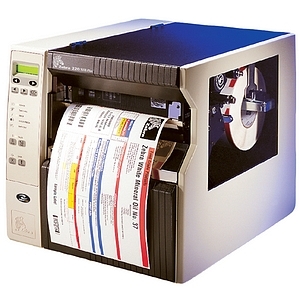

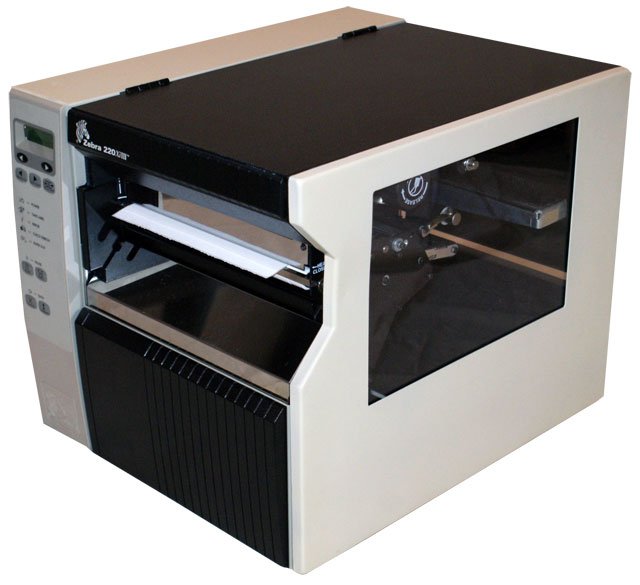

Zebra 220XiIIIPlus – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: 223-7A1-00000
Model: 220XiIIIPlus

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Zebra 220XiIIIPlus Barcode Label Printer Model Overview

The 220XiIIIPlus quickly prints large labels, up to 8.5 inches (216mm) wide, at 10 inches per second. With its all metal construction, the 220XiIIIPlus printer is ideal for industrial environment applications where high quality, large labels are needed - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. Capable of printing up to 55 pages per minute, the 220XiIIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications. The 220XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 220XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 223-7A1-00000 Barcode Label Printer Overview

The 220XiIIIPlus performs detailed, high-density printing of graphics or small fonts for labels, invoices, and other large documents. With its all-metal construction, it is ideal for industrial environment applications - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. The 220XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-E
  • UPC-A
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Label
Media Size:
  • Letter - 8.50" x 11"
  • Custom Size - 8.80"
  • 8.80"
  • 4.25"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
8.80"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
15.7"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 220XiIIIPlus Label Printer
  • 120 VAC North American Edition Power Cord
  • User Guide
  • Utility CD
Cables Included:
AC
Additional Information:
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Clear Media Side Door and Media Hanger
  • Transmissive and reflective media sensors
  • Enhanced Alert notification monitors printhead condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
