Zebra 223-701-00000 Barcode Label Printer

The Zebra 223-701-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 220XiIIIPlus - Thermal Transfer Industrial Printer (300 dpi, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
8.75 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 8.80" maximum label width for dependable, desired results
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra 220XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 223-701-00000 Barcode Label Printer
Zebra 223-701-00000 Barcode Label Printer Zebra 223-701-00000 Barcode Label Printer Zebra 223-701-00000 Barcode Label Printer
Zebra 223-701-00000 Barcode Label Printer
Zebra 223-701-00000 Barcode Label Printer

Full specifications (PDF)

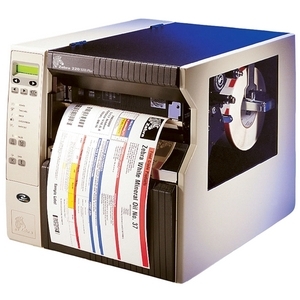

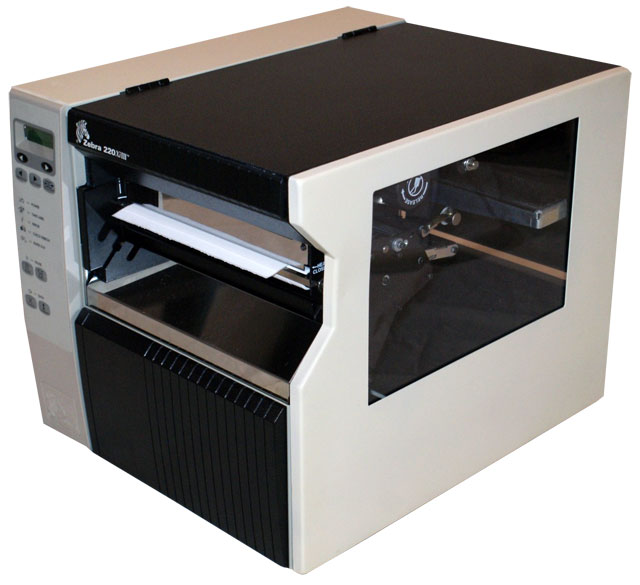

Zebra 220XiIIIPlus Barcode Label Printer Model Overview
The 220XiIIIPlus quickly prints large labels, up to 8.5 inches (216mm) wide, at 10 inches per second. With its all metal construction, the 220XiIIIPlus printer is ideal for industrial environment applications where high quality, large labels are needed - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. Capable of printing up to 55 pages per minute, the 220XiIIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications. The 220XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 220XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 223-701-00000 Barcode Label Printer Overview

The 220Xi IIIPlus with 300 dpi can quickly prints large labels, up to 8.5 inches (216 mm) wide, at 6 inches per second (ips), high-density printing of graphics or small fonts for labels, invoices, and other large documents. With its all metal construction, it is ideal for industrial environment applications where high quality, large labels are needed - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. Capable of printing up to 55 pages per minute, the 220Xi IIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications. The 220Xi IIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-E
  • UPC-A
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
8.80"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
15.7"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 220XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Hanger
  • Power Configuration: North American Edition, 120 VAC Cord
  • Advanced media/ribbon counter
  • Enhanced Alert notification -monitors printhead condition
  • 300 unique darkness settings
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Widest print width
  • Unicode -Compliant
Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • EN55024: 1998
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • EN55022: 1998 Class B
  • Argentina 92/98 Phase 3
  • Canadian ICES-003, Class B
  • EN61000-3-2,3 W/amendment A12
  • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
  • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 223-701-00000 Barcode Label Printer is also known as ZEB-22370100000 or 223-701-00000.
