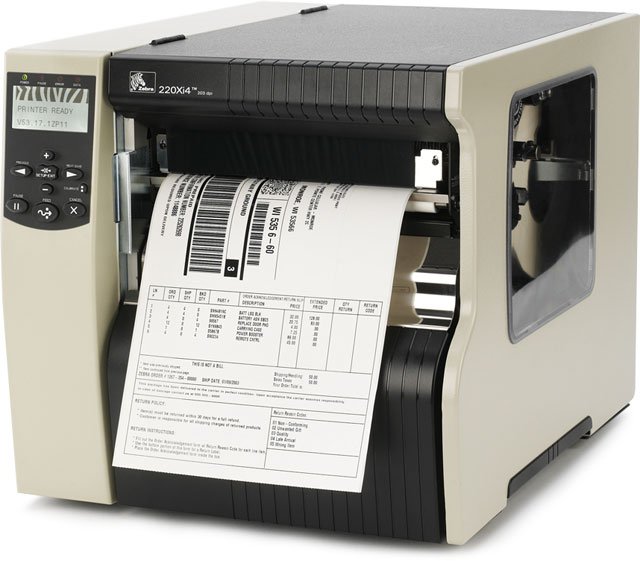

Zebra 220-8J1-00000-GA Barcode Label Printer

The Zebra 220-8J1-00000-GA Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 220Xi4 - Thermal transfer Industrial Printer (TTA Compliant, 203 dpi, IPv6, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories. TAA compliant version of printer (Part# 220-8J1-00000).
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
8.75 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 8.80" maximum label width for dependable, desired results
  • 12.50 ft maximum label length for dependable, desired results
  • Supports black mark media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
  • Clear Bi-fold Media Side Door feature for maximum efficiency and convenience
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra 220Xi4 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 220-8J1-00000-GA Barcode Label Printer
Zebra 220-8J1-00000-GA Barcode Label Printer Zebra 220-8J1-00000-GA Barcode Label Printer Zebra 220-8J1-00000-GA Barcode Label Printer Zebra 220-8J1-00000-GA Barcode Label Printer Zebra 220-8J1-00000-GA Barcode Label Printer
Zebra 220-8J1-00000-GA Barcode Label Printer
Zebra 220-8J1-00000-GA Barcode Label Printer
Zebra 220-8J1-00000-GA Barcode Label Printer
Zebra 220-8J1-00000-GA Barcode Label Printer

Full specifications (PDF)
Zebra 220Xi4 Barcode Label Printer Model Overview
Zebra's built-to-last 220Xi4 printers give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible durability, consistently outstanding print quality, fast print speed, long life and unparalled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.
Zebra 220-8J1-00000-GA Barcode Label Printer Overview

Designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution, the 220Xi4 is ideal for industrial applications-chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • Micro PDF
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Industrial 2 of 5 w
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Clear Bi-fold Media Side Door
  • Auto-calibration
  • Mirror Printing
  • Element Energy Equalizer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
Media Handling:
1 x Catch Tray
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
8.80"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
15.8"
Depth:
20.4"
Weight (Approximate):
72 lb
Miscellaneous
Package Contents:
  • 220Xi4 Label Printer Government Compliant
  • Software & Driver CD
  • User's Guide
  • North American Edition, 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Unicode
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
  • TAA
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 220-8J1-00000-GA Barcode Label Printer is also known as 220-8J1-00000-GA
