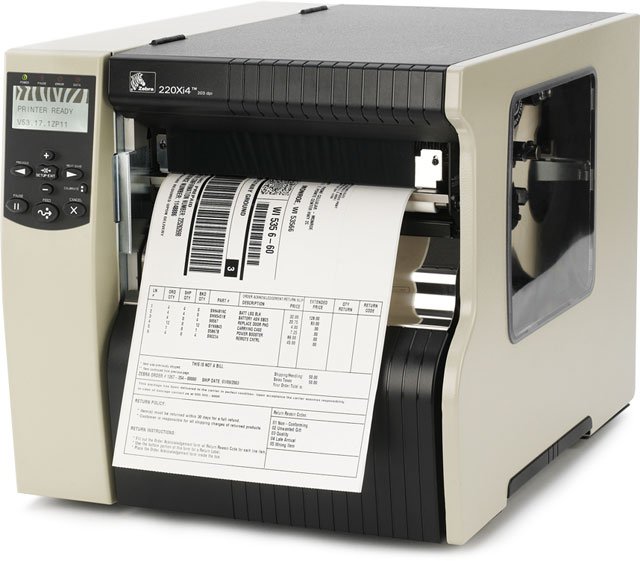

Zebra 220-801-00000-GA Barcode Label Printer

Zebra 220Xi4 - Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories. This is the TAA compliant version of this product for government purchasers. Please Call for more information.
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Save time and money for your business by using one printer for all your employees
Read More

Full specifications (PDF)

Zebra's built-to-last 220Xi4 printers give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible durability, consistently outstanding print quality, fast print speed, long life and unparallel reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.
Zebra 220-801-00000-GA Overview

Designed to produce large labels at 203 dpi resolution, the 220Xi4 Thermal Label Printer is ideal for industrial applications such as chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Loading...

Full specifications (PDF)

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-B
  • Code 128-A
  • Code 128-C
  • Code 128 UCC
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Aztec Code
  • RSS
  • GS1 DataBar
Features:
LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Form
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
3.20"
Maximum Label Width:
8.80"
Maximum Label Length:
12.50 ft
Label Core Size:
1"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
15.8"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 220Xi4 Thermal Label Printer
  • North American Edition Power Cord
  • Xi4 User's Guid
  • ZebraNet Connectivity CD
Platform Supported:
PC
Certifications & Standards:
TAA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Loading...
Loading...
Loading...
Loading...

The Zebra 220-801-00000-GA is also known as 220-801-00000-GA or 22080100000GA .
