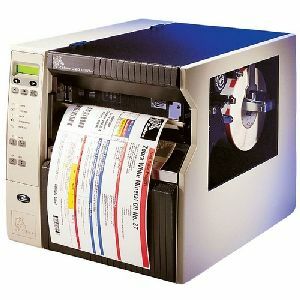

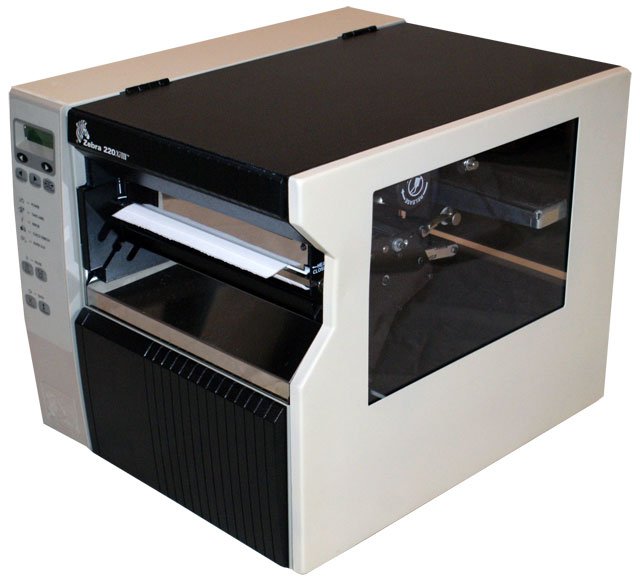

Zebra 220-741-00100 Barcode Label Printer

The Zebra 220-741-00100 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 220XiIIIPlus - Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
8.75 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Get great quality printing results with label print printing
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 8.80" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Cutter helps you determine the whereabouts of your design you want the shape to be cut to ensure maximum efficiency
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra 220XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 220-741-00100 Barcode Label Printer
Zebra 220-741-00100 Barcode Label Printer Zebra 220-741-00100 Barcode Label Printer Zebra 220-741-00100 Barcode Label Printer
Zebra 220-741-00100 Barcode Label Printer
Zebra 220-741-00100 Barcode Label Printer

Full specifications (PDF)
Zebra 220XiIIIPlus Barcode Label Printer Model Overview
The 220XiIIIPlus quickly prints large labels, up to 8.5 inches (216mm) wide, at 10 inches per second. With its all metal construction, the 220XiIIIPlus printer is ideal for industrial environment applications where high quality, large labels are needed - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. Capable of printing up to 55 pages per minute, the 220XiIIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications. The 220XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 220XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 220-741-00100 Barcode Label Printer Overview

The 220XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications. Capable of printing up to 55 pages per minute, the 220XiIIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-E
  • UPC-A
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
8.80"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
15.7"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 220XiIIIPlus Label Printer
  • North American Edition Cord
  • User's Guide
  • Ztools Utilities
  • ZPL II Programming Guide
  • Zebra Designer
  • Zebra Designer Pro
  • Universal Windows Printer Driver
  • ZebraNet WebView and Alert Utilities
  • Adobe Acrobat
  • Direct Zebra Web Access
  • ZebraNet Connectivity CD
Additional Information:
  • North American Edition, 120 VAC Cord
  • PCMCIA socket
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • Clear Media Side Door & Media Hanger
  • Transmissive and reflective media sensors
  • IBM Code Page 850 International Characters
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Enhanced Alert notification monitors printhead condition
Platform Supported:
PC
Certifications & Standards:
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 220-741-00100 Barcode Label Printer is also known as ZEB-22074100100 or 220-741-00100.
