Zebra 220-701-00000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

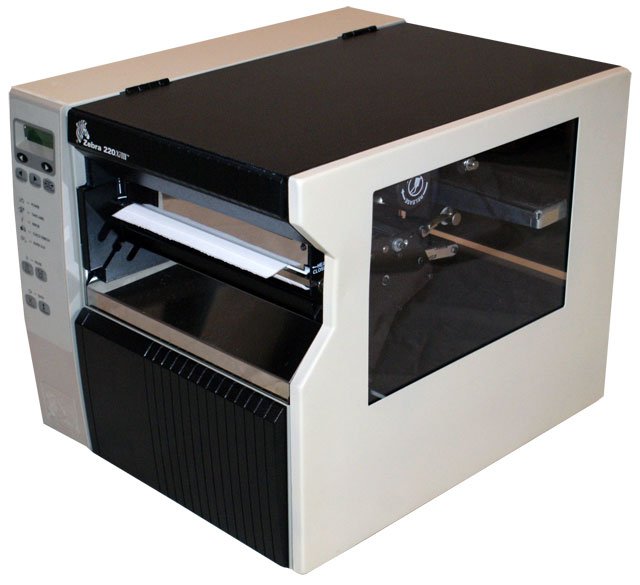

Zebra 220XiIIIPlus - Thermal transfer Industrial Printer (203 dpi, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
The 220XiIIIPlus quickly prints large labels, up to 8.5 inches (216 mm) wide.

The 220XiIIIPlus quickly prints large labels, up to 8.5 inches (216 mm) wide, at 10 ips. With its all metal construction, the 220XiIIIPlus printer is ideal for industrial environment applications where high quality, large labels are needed - chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles. Capable of printing up to 55 pages per minute, the 220XiIIIPlus is also a high-speed alternative to laser printers for printing 8.5 inch x 11 inch packing slips and invoices for high volume, on-demand order fulfillment applications. The 220XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 220XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x RS-232 Serial
    • 1 x Parallel
    • 1 x USB
  • Maximum Print Width: 8.5"
  • Maximum Label Width: 8.8"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 16MB
  • Input Voltage Range: 90 to 264 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 15.65" (397.51mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 15.65" (397.51mm) x x 19.5" (495mm)
  • Weight: 72 lb (32.66 kg)

Included Features

  • Included Features: Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • Zebra 220XiIIIPlus Label Printer
    • User's Guide
    • Utilities & Driver's CD
    • 220XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 220XiIIIPlus
Print Method Thermal Transfer
Print Resolution 203 dpi
Max Label Width 8.80
Print Speed 10
Label Core 3 inches
Interface Options USB, Serial, Parallel
Maximum Print Width 8.50
Printer Type Industrial
Max Roll Outer Diameter 8
Printer Mobility Not Mobile
Ribbon Core 1
