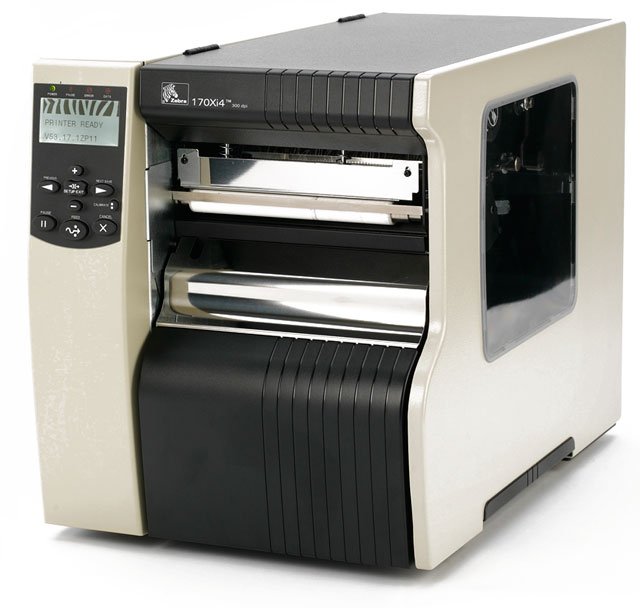

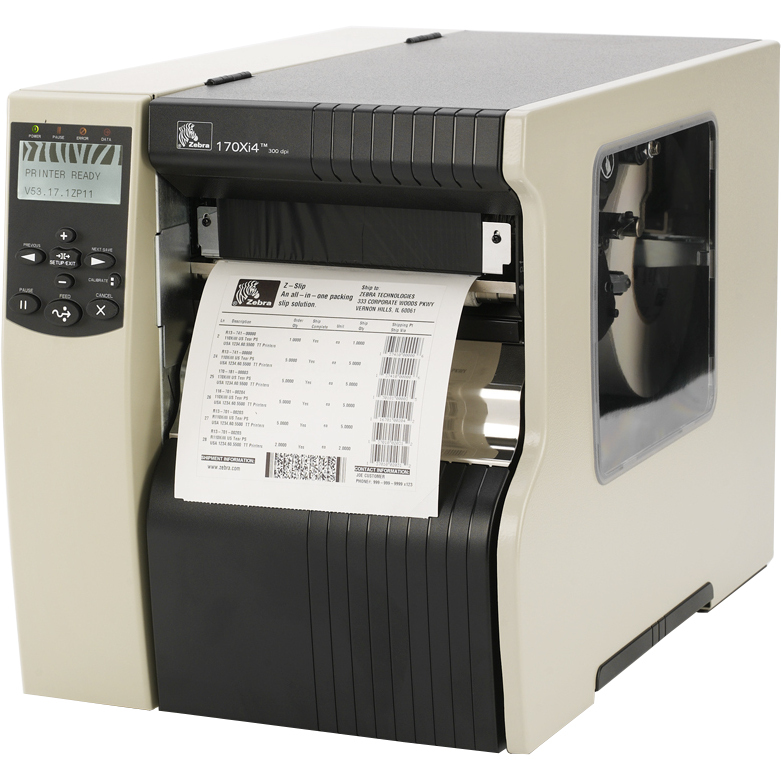

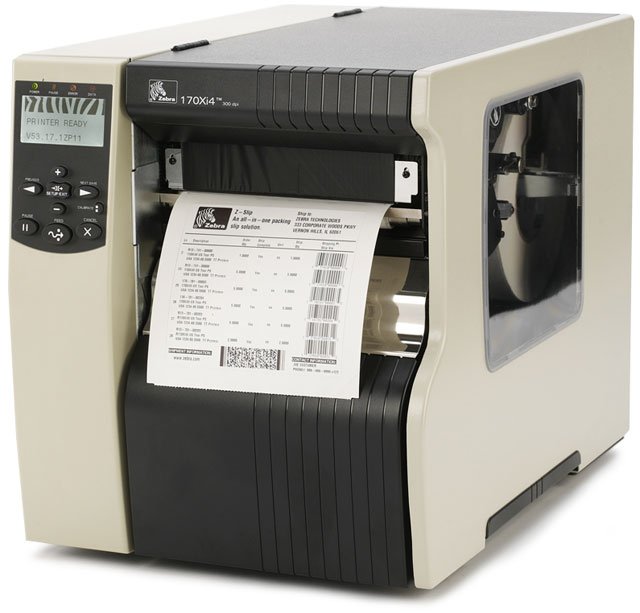

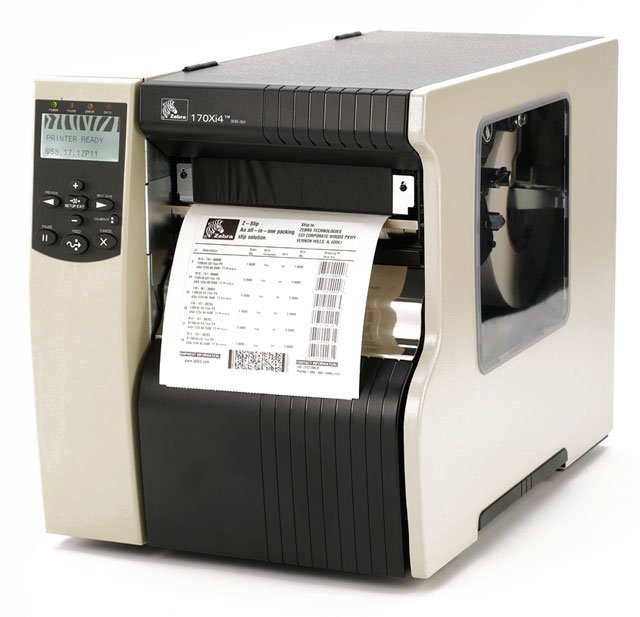

Zebra 172-851-00000 Barcode Label Printer

The Zebra 172-851-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 170Xi4 - Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Serial (RS-232), Parallel, and Applicator (5v) interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
7 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 7.10" maximum label width to easily accommodate your needs with added productivity
  • 12.50 ft maximum label length to easily accommodate your needs with added productivity
  • Supports black mark media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with industrial application/usage provides dependable printing solution with added productivity
  • Comes with 16 MB standard memory for timely printing with added reliability
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More

Need a different version? See all Zebra 170Xi4 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 172-851-00000 Barcode Label Printer
Zebra 172-851-00000 Barcode Label Printer Zebra 172-851-00000 Barcode Label Printer Zebra 172-851-00000 Barcode Label Printer Zebra 172-851-00000 Barcode Label Printer Zebra 172-851-00000 Barcode Label Printer
Zebra 172-851-00000 Barcode Label Printer
Zebra 172-851-00000 Barcode Label Printer
Zebra 172-851-00000 Barcode Label Printer
Zebra 172-851-00000 Barcode Label Printer

Full specifications (PDF)
Zebra 170Xi4 Barcode Label Printer Model Overview
The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Zebra 172-851-00000 Barcode Label Printer Overview

Increase productivity and print high-volume, wide labels on demand or in batch with unmatched performance ideal for compliance, product identification and pallet labeling.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.95 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Micro PDF-417
Real Time Clock:
Yes
Application/Usage:
Industrial
Features:
  • Element Energy Equalizer
  • Auto-calibration
  • Mirror Printing
  • Clear Media Side Door
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Roll Fed
  • Die-cut Label
  • Fanfold
  • Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.3"
Depth:
20.4"
Weight (Approximate):
67 lb
Miscellaneous
Package Contents:
  • 170Xi4 Industrial Printer
  • Safety Guide
  • Software & Driver CD
  • North American Edition, 120 VAC Cord
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
  • IPV6
  • Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 172-851-00000 Barcode Label Printer is also known as ZEB-17285100000 or 172-851-00000.
