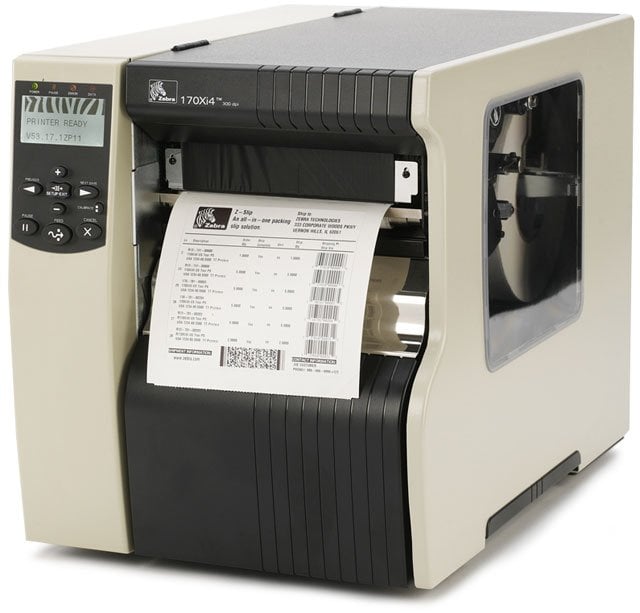

Zebra 172-801-00200 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT62062-T210100Z Barcode Label Printer.

Zebra 170Xi4 - Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Max Print Width

7 inch

Print methods: Thermal transfer or direct thermal
Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels

Need a different version? See all Zebra 170Xi4 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra 172-801-00200 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

6.60"

Barcode Symbology Supported:

Codabar
Code 11
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Code 39
Code 93
EAN-8
EAN-13
ISBT-128
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
Planet Code
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
Micro PDF
PDF-417
QR Code
RSS
GS1 DataBar
TLC 39

Peel Facility:

Yes

Rewinder:

Yes

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Black Mark
Continuous Label
Die-cut Label
Fanfold
Roll Fed

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

Maximum Label Width:

7.10"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II
XML

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

13.3"

Depth:

20.4"

Miscellaneous

Package Contents:

170Xi4 Label Printer
User Guide
Software CD
North American Edition 120 VAC Power Cord

Cables Included:

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0682017486130, 0783555108246

UPC: 682017486130, 783555108246

EAN: 0682017486130, 0783555108246

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 172-801-00200 Barcode Label Printer is also known as ZEB-17280100200 or 172-801-00200.
