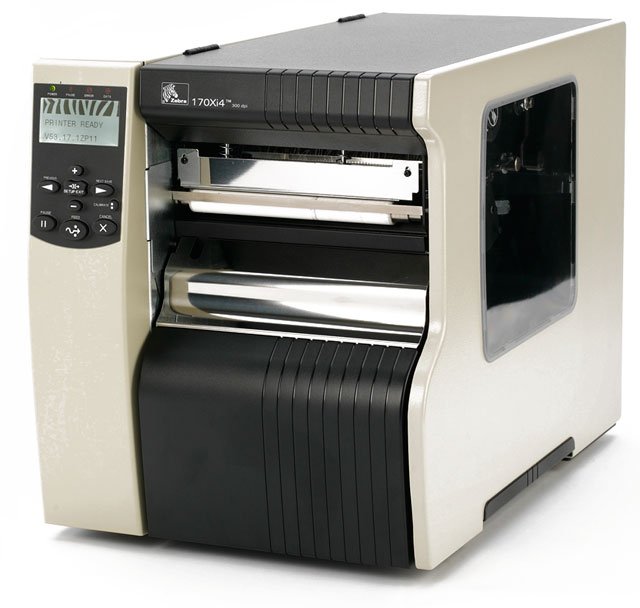

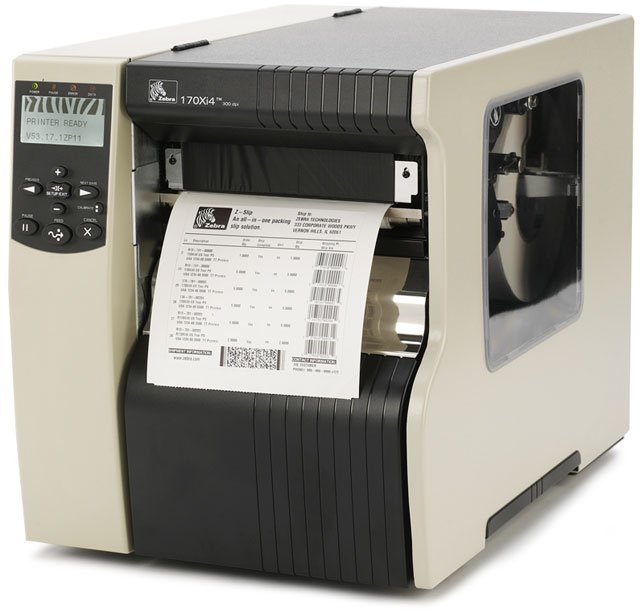

Zebra 170Xi4 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 172-801-00100
Model: 170Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Explore all Zebra 170Xi4 Barcode Label Printers
Add to Quote
Zebra 172-801-00100 Barcode Label Printer
Zebra 172-801-00100 Barcode Label Printer
Zebra 172-801-00100 Barcode Label Printer
Zebra 172-801-00100 Barcode Label Printer
Zebra 172-801-00100 Barcode Label Printer
Zebra 172-801-00100 Barcode Label Printer Zebra 172-801-00100 Barcode Label Printer Zebra 172-801-00100 Barcode Label Printer Zebra 172-801-00100 Barcode Label Printer

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Zebra 172-801-00100 Barcode Label Printer Overview

Achieve new levels of high performance Zebra's built-to-last Xi series printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. These qualities translate into low total cost of ownership-making them a smart investment for organizations with high-volume, mission-critical or specialty labeling applications.

Xi4 printers build on this legacy to boost your operational productivity with up to 40 percent faster print speeds on select models, faster 10/100 Ethernet connection speeds, and enhanced early warning systems for reduced downtime. Other advanced and flexible features include a large, easy-to-read front panel for simple setup with optional customizable menu and support for a wider assortment of languages. Integration is easier with a variety of network connectivity options, while ZebraLink Solutions provide remote printer management capabilities.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128 UCC
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Aztec Code
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • Code 39
  • Code 93
  • Code 49
  • ISBT-128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • EAN-13
  • EAN-8
  • LOGMARS
  • MSI
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Codablock
  • Data Matrix
  • Maxi Code
  • Micro PDF
  • QR Code
  • RSS
  • GS1 DataBar
Application/Usage:
Desktop
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Roll Fed
  • Black Mark
  • Die-cut Label
  • Fanfold
Media Size:
Custom Size
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
13.3"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 170Xi4 Label Printer
  • Internal Zebranet 10/100 Print Server
  • User Guide
  • Software CD
  • North American Edition, 120 VAC Cord
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555102251
UPC: 783555102251
EAN: 0783555102251
UNSPSC: 43212108
