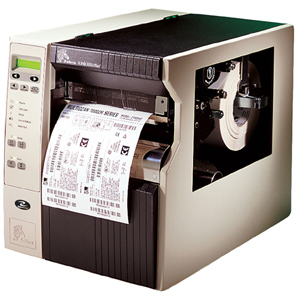

Zebra 170XiIIIPlus – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 172-7A1-00800
Model: 170XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, USB
Print Resolution
203 dpi

Product Description:

  Thermal Transfer Industrial Printer (RFID Ready, 203 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Explore all Zebra 170XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 172-7A1-00800 Barcode Label Printer
Zebra 172-7A1-00800 Barcode Label Printer
Zebra 172-7A1-00800 Barcode Label Printer
Zebra 172-7A1-00800 Barcode Label Printer Zebra 172-7A1-00800 Barcode Label Printer

Full specifications (PDF)

Zebra 170XiIIIPlus Barcode Label Printer Model Overview

The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 172-7A1-00800 Barcode Label Printer Overview

The industrial strength 170XiIIIPlus with 203 dpi print resolution can print large volumes labels up to 6.6 inches wide at 12 inches per second, promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels, product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus RFID Network Thermal Label Printer
  • Power Cord (North American Edition)
  • Software and Driver CD
  • XiIIIPlus User's Guide
Cables Included:
AC
Additional Information:
  • Bi-fold Door
  • PCMCIA socket
  • ZebraLink Solutions
  • Unicode - Compliant
  • Clear Media Side Door
  • 300 unique darkness settings
  • Multilingual backlit LCD display
  • Advanced media / ribbon counter
  • Construction : 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • North American Edition, 120 VAC Cord
  • Enhanced Alert notification -- monitors print head condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
