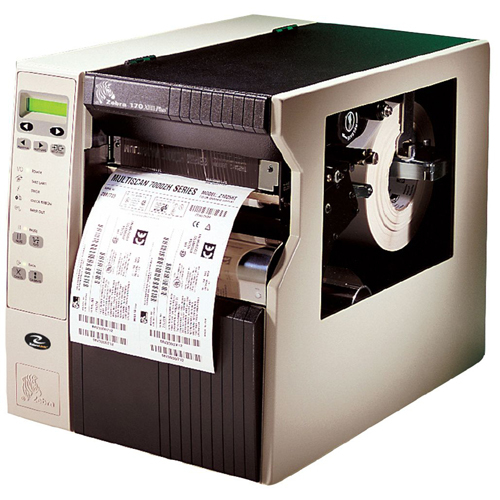

Zebra 170XiIIIPlus – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter

Part Number: 172-7A1-00100
Model: 170XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer printing, RFID ready, 203 dpi, 6.6" print width, Ethernet/USB/RS-232/Parallel interfaces, Cutter, Catch Tray. Includes US power cord. Interface cables sold separately.
Explore all Zebra 170XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 172-7A1-00100 Barcode Label Printer
Zebra 172-7A1-00100 Barcode Label Printer
Zebra 172-7A1-00100 Barcode Label Printer
Zebra 172-7A1-00100 Barcode Label Printer Zebra 172-7A1-00100 Barcode Label Printer

Full specifications (PDF)

Zebra 170XiIIIPlus Barcode Label Printer Model Overview

The industrial-strength 170XiIIIPlus can print large volumes of high resolution labels up to 6.6 inches (168mm) wide at eight inches per second. With its all metal construction, the 170XiIIIPlus printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 170XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 172-7A1-00100 Barcode Label Printer Overview

The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications. 170XiIIIPlus Label printer is ideal for tough applications including compliance labels, product identification labels, pallet shipping/receiving labels either on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170XiIIIPlus Label Printer
  • User Guide
  • Accessories CD
  • ZebraNet Connectivity CD for Print Server
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Clear Media Side Door
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Transmissive and reflective media sensors
  • Enhanced Alert notification monitors printhead condition
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • MIC
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
