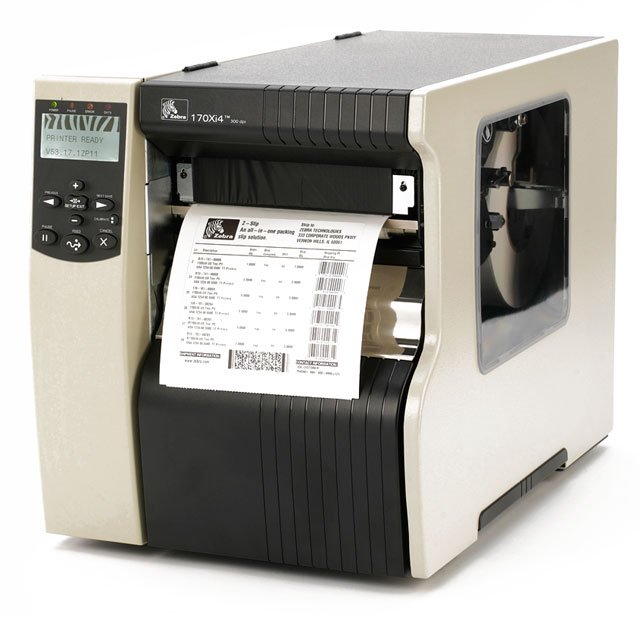

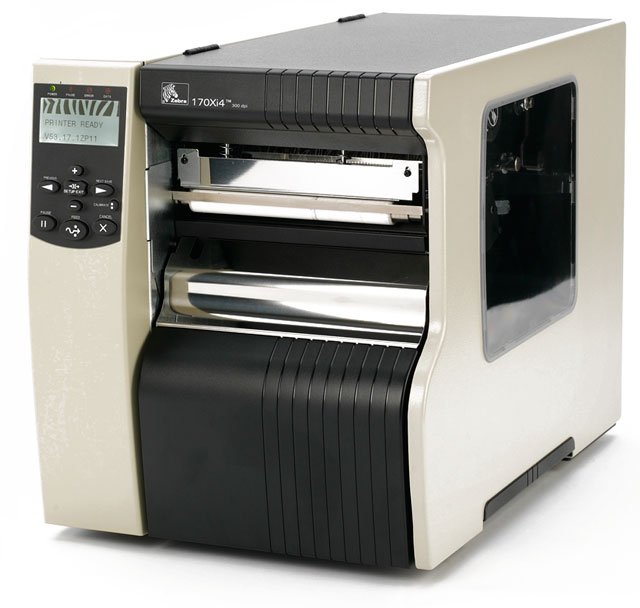

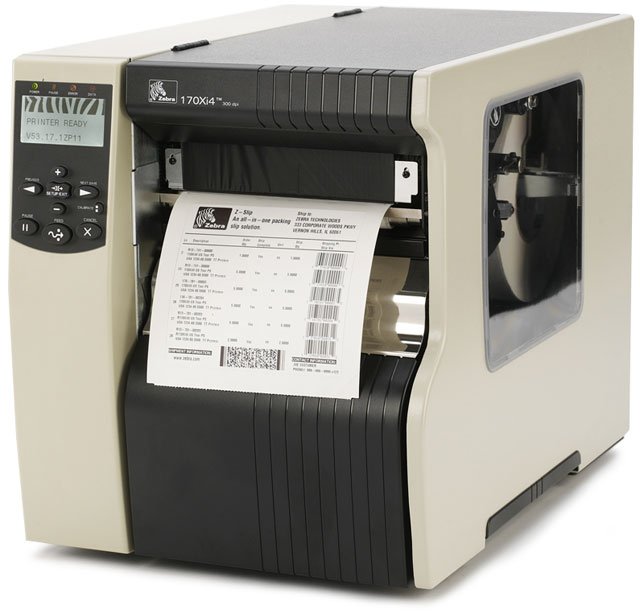

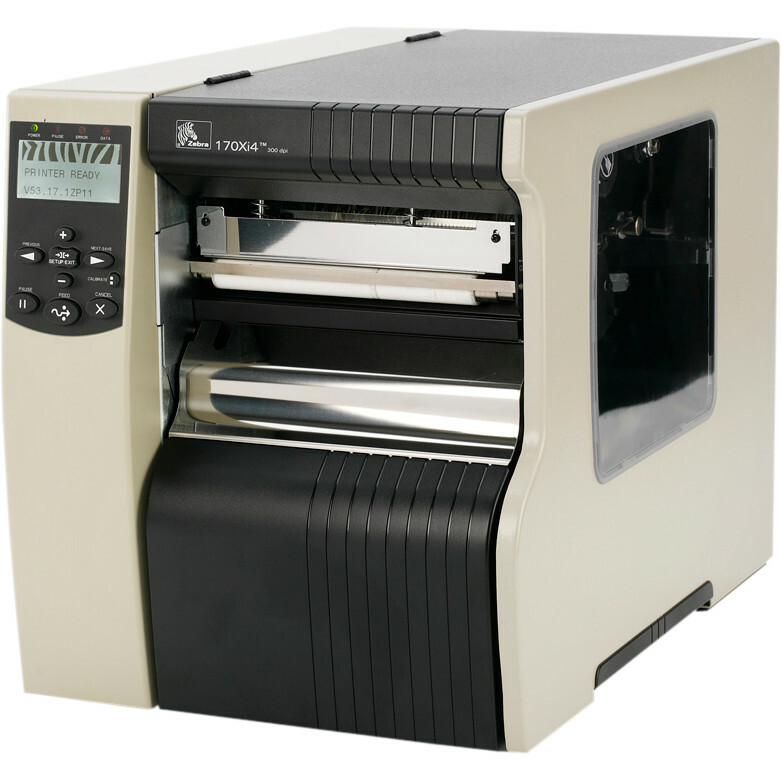

Zebra 170Xi4 – Barcode Label Printer – 300 dpi

Part Number: 170-8K1-00100
Model: 170Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
300 dpi

Product Description:

  Thermal transfer printer, 300 dpi, 6.6" print width, tear bar, cutter, RS-232 serial, USB 2.0, Centronics parallel, internal ZebraNet 10/100 print server, 64MB FLASH memory, ZPL II, XML, clear media side door, printhead element out detection, media supply hanger, Includes North America power cord
Explore all Zebra 170Xi4 Barcode Label Printers
Add to Quote
Zebra 170-8K1-00100 Barcode Label Printer
Zebra 170-8K1-00100 Barcode Label Printer
Zebra 170-8K1-00100 Barcode Label Printer
Zebra 170-8K1-00100 Barcode Label Printer
Zebra 170-8K1-00100 Barcode Label Printer
Zebra 170-8K1-00100 Barcode Label Printer Zebra 170-8K1-00100 Barcode Label Printer Zebra 170-8K1-00100 Barcode Label Printer Zebra 170-8K1-00100 Barcode Label Printer

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Zebra 170-8K1-00100 Barcode Label Printer Overview

Built for high-volume applications and harsh environments, Zebra's Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.95 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Micro PDF-417
Real Time Clock:
Yes
Application/Usage:
Industrial
Features:
  • Clear Media Side Door
  • Element Energy Equalizer
  • Auto-calibration
  • Mirror Printing
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Handling:
Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.3"
Depth:
20.4"
Weight (Approximate):
67 lb
Miscellaneous
Package Contents:
  • 170Xi4 Industrial Printer
  • Xi4 User Guide
  • Software & Driver CD
  • North American Edition, 120 VAC Cord
  • Programming Guide for ZPL II, WML, and Mirror
  • Product Support Services Guide
  • Radio Card
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0608474427417
UPC: 608474427417
EAN: 0608474427417
UNSPSC: 43212108
