Zebra 170-801-00201 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

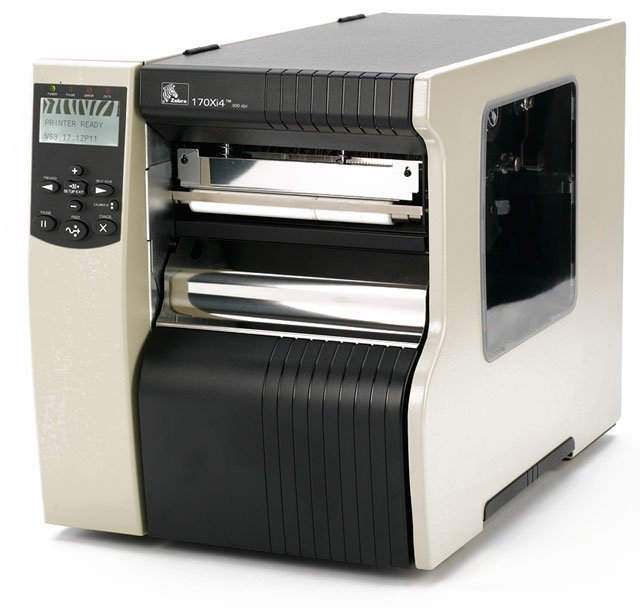

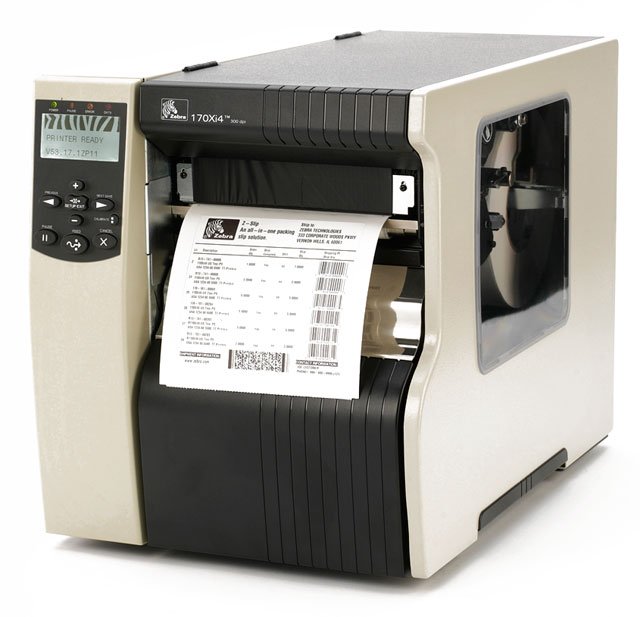

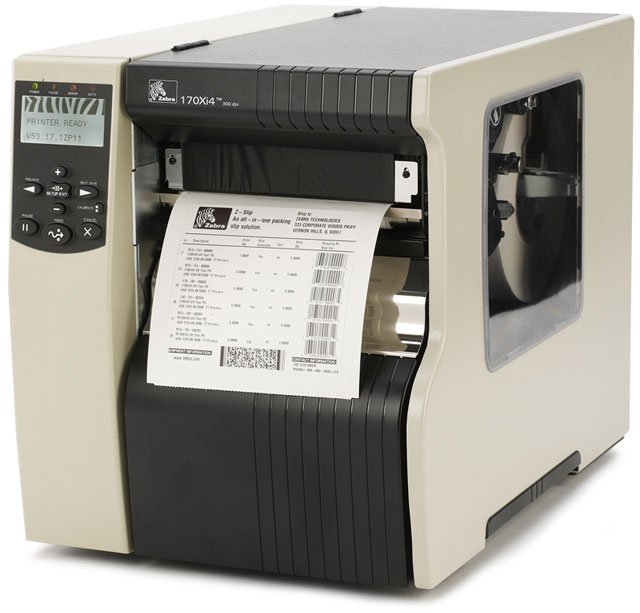

Zebra 170Xi4 - Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & 3" Media Spindle). Includes power supply. Cables sold separately. See accessories.

The industrial-strength Zebra 170Xi4 with 203- or 300 dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features:
    • Mirror Printing
    • Clear Media Side Door
    • Real Time Clock
    • Rewind
    • Peel Facility
    • Media Supply Spindle
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF-417
    • Micro PDF
    • RSS
    • Aztec Code
    • GS1 DataBar
    • ISBT-128

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 67 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Label Printer
    • User's Guide
    • Software & Driver CD
    • North American Edition 120 VAC Cord
    • 170Xi4 Label Printer
    • User's Guide
    • Software & Driver CD
    • North American Edition 120 VAC Cord
  • Certifications & Standards:
    • CE
    • CCC
    • BSMI
    • C-Tick
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • cTUVus
    • IEC 60950-1 / EN60950
    • KCC
    • NOM
    • S Mark
    • STB
    • UkrSEPRO
    • VCCI
    • ZIK

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Die-cut Label
    • Roll Fed
    • Fanfold
    • Continuous Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 170Xi4
Maximum Print Width 6.60
Max Label Width 7.10
Interface Options Serial, Parallel, Ethernet, USB
Print Speed 12
Print Method Thermal Transfer
Max Roll Outer Diameter 8
Print Resolution 305 dpi
Brand Zebra
Printer Type Industrial
Label Core 3 inches
Printer Mobility Not Mobile
