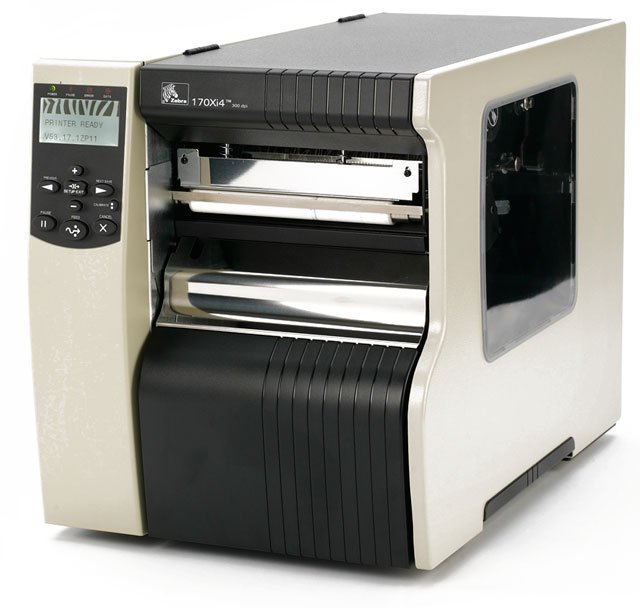

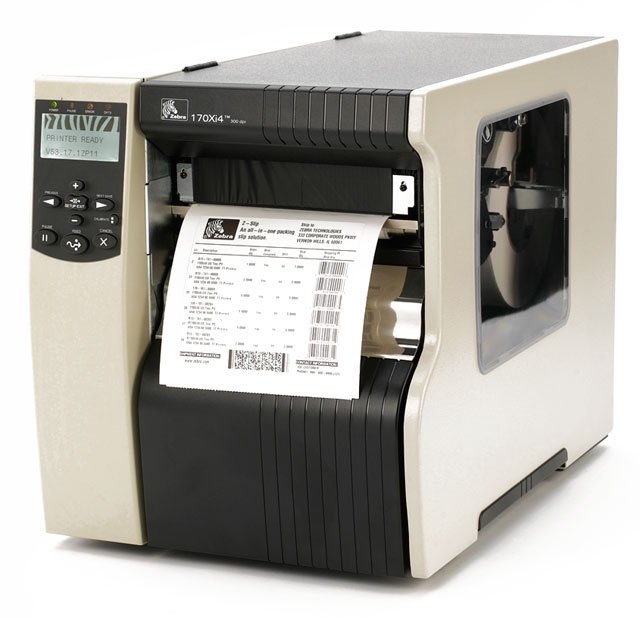

Zebra 170-801-00200 Barcode Printer

Zebra 170Xi4 - Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

The industrial-strength Zebra 170Xi4 with 203- or 300 dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Technical Information

  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features:
    • Rewind
    • Peel Facility
    • LCD Display
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • UPC-E
    • UPC-A
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 128 UCC
    • ISBT-128
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Network Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.7"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Network Thermal Label Printer
    • Power Cord
    • Xi4 User's Guide
    • CD (Includes: Ztools Utilities, ZPL II Programming Guide and Zebra Designer Software)
    • 170Xi4 Network Thermal Label Printer
    • Power Cord
    • Xi4 User's Guide
    • CD (Includes: Ztools Utilities, ZPL II Programming Guide and Zebra Designer Software)
  • Additional Information:
    • Widest print width
    • Unicode Compliant
    • PCMCIA socket
    • Clear Media Side Door
    • Enhanced Alert notification
    • Advanced media/ribbon counter
    • Multi-level Element Energy Equalizer
    • Construction: 12-gauge steel frame
    • Single 32 bit 133 Mhz RISC processor
    • North American Edition, 120 VAC Cord

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 170Xi4
Max Label Width 7.10
Print Speed 12
Brand Zebra
Print Method Thermal Transfer
Interface Options Parallel, USB, Serial
Print Resolution 305 dpi
Labels Per Day more than 10,000
Label Core 3 inches
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Printer Type Industrial
Included Features Rewinder, Peeler
Printer Mobility Not Mobile
