Zebra 170-801-00000 Barcode Label Printer

Zebra ZT62063-T010100Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT62063-T010100Z Barcode Label Printer.
Zebra 170Xi4 - Thermal Transfer Industrial Printer, 300 dpi, 6.6" max print width, 16MB SDRAM, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, Clear Media Side Door & Media Hanger, and US Power Cord. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
7 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Label Print gives dependable results with maximum productivity
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 7.10" maximum label width for dependable, desired results
  • 12.50 ft maximum label length to easily accommodate your needs with added productivity
  • Supports black mark media type for better reliance and maximum usability
  • LCD Display feature for maximum productivity with added dependability
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

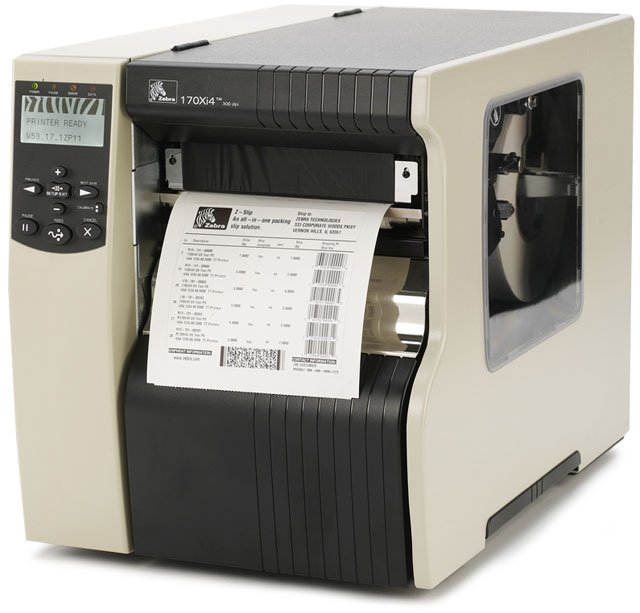

Zebra 170Xi4 Barcode Label Printer Model Overview
The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Zebra 170-801-00000 Barcode Label Printer Overview

The industrial-strength 170Xi4 Thermal Label Printer with 300-dpi (12 dots per mm) print resolution can print large volumes of labels, promoting greater productivity with fewer roll changes. With its all-metal construction, this printer is ideal for tough applications.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-B
  • Code 128-A
  • Code 128-C
  • Code 128 UCC
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Aztec Code
  • RSS
  • GS1 DataBar
Features:
LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Form
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
13.3"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 170Xi4 Thermal Label Printer
  • North American Edition Power Cord
  • Xi4 User's Guid
  • ZebraNet Connectivity CD
Cables Included:
AC
Additional Information:
  • Auto calibration
  • Unicode Compliant
  • Intelligent printhead
  • 300 unique darkness settings
  • Improved head test for element out
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • Multi-level Element Energy Equalizer
  • Clear Media Side Door and Media Hanger
  • Automatic media/ribbon sensing capability
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0092288370227, 0778889965504, 0783555019528, 0807027540744
UPC: 092288370227, 778889965504, 783555019528, 807027540744
EAN: 0092288370227, 0778889965504, 0783555019528, 0807027540744
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 170-801-00000 Barcode Label Printer is also known as ZEB-17080100000 or 170-801-00000.
