Zebra 140-801-00203 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

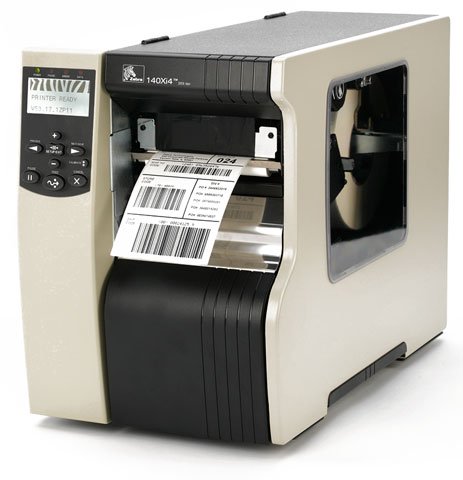

Zebra 140Xi4 - Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 5" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Bi-fold Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
$4,270.80
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 5.04"
  • Recommended Use: Label Print
  • Features:
    • Rewind
    • Clear Bi-fold Media Side Door
    • Mirror Printing
    • Real Time Clock
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Aztec Code
    • QR Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • TLC 39
    • RSS
    • GS1 DataBar
    • Micro PDF-417
    • ISBT-128

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 140Xi4
  • Product Name: 140Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 11.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 55 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 140Xi4 Label Printer
    • User Guide
    • Software and Driver CD
    • North American Edition 120 VAC Power Cord
    • 140Xi4 Label Printer
    • User Guide
    • Software and Driver CD
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • BSMI
    • cTUVus
    • CCC
    • CE
    • C-Tick
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • KCC
    • NOM
    • S Mark
    • STB
    • UkrSEPRO
    • VCCI
    • ZIK
    • Unicode

Media Types & Handling

  • Maximum Label Width: 5.51"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Continuous Label
    • Black Mark
    • Die-cut Label
    • Fanfold
    • Roll Fed
  • Media Handling: 1 x Catch Tray
  • Media Thickness: 12 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 140Xi4
Max Roll Outer Diameter 8
Max Label Width 5.51
Maximum Print Width 5.04
Interface Options Ethernet, Parallel, USB, Serial
Print Method Thermal Transfer
Brand Zebra
Print Speed 14
Printer Type Industrial
Print Resolution 203 dpi
Label Core 3 inches
Printer Mobility Not Mobile
