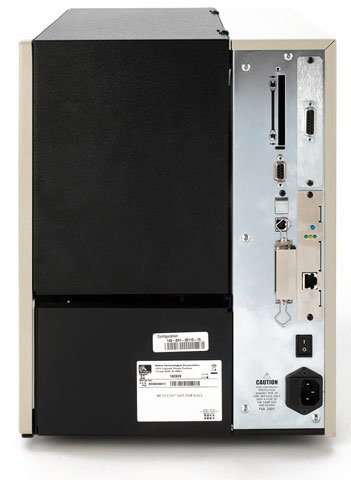

Zebra 140-801-00100 Barcode Printer

Zebra 140Xi4 - Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 5" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 5.04"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • ISBT-128
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 140Xi4
  • Product Name: 140Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 11.3"
  • Depth: 20.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 5.51"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Roll Fed
  • Media Thickness: 12 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • 140Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord
    • 140Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 140Xi4
Interface Options USB, Serial, Parallel
Included Features XML, ZPL2, Cutter
Printer Type Industrial
Max Roll Outer Diameter 8
Label Core 3 inches
Print Resolution 203 dpi
Print Method Thermal Transfer
Maximum Print Width 5.04
Max Label Width 5.51
Brand Zebra
Labels Per Day more than 10,000
Print Speed 14
Printer Mobility Not Mobile
