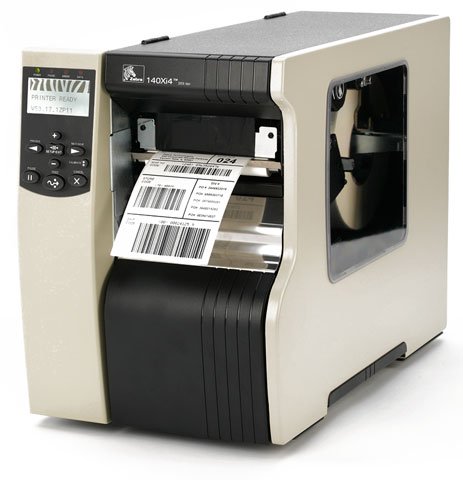

Zebra 140Xi4 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 140-801-00010
Model: 140Xi4
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 5" max print width, 64MB Flash, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Zebra 140Xi4 Barcode Label Printer Model Overview

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.
Zebra 140-801-00010 Barcode Label Printer Overview

Another addition to Zebra's Xi4 product line is the 140Xi4. Built on the proven Xi series platform that is known for rugged durability and performance, the new Xi4 brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the Xi4 now provides several new features and benefits

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • POSTNET
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • GS1 DataBar
Application/Usage:
Desktop
Features:
Clear Media Side Door
Print Technology:
Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Label
  • Black Mark
  • Roll Fed
  • Die-cut Label
  • Fanfold
  • Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
11.3"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 140Xi4 Label Printer
  • North American Edition 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
