Zebra 140-801-00003 Barcode Label Printer

Zebra ZT62062-T010100Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT62062-T010100Z Barcode Label Printer.
Zebra 140Xi4 - Thermal Transfer Industrial Printer (203 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 5" max print width, 16MB SDRAM, Clear Bi-fold Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
5.5 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Save time and money for your business by using one printer for all your employees
  • 5.51" maximum label width for your convenience and feasible usability
  • 12.50 ft maximum label length for dependable, desired results
  • Supports fanfold media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Mirror Printing feature for maximum productivity with added dependability
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

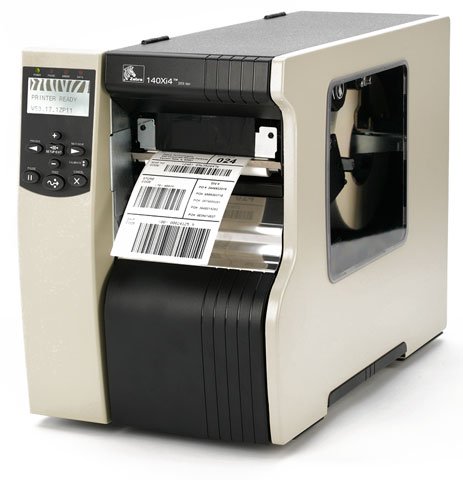

Zebra 140Xi4 Barcode Label Printer Model Overview
Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.
Zebra 140-801-00003 Barcode Label Printer Overview

Another addition to Zebra's Xi4 product line is the 140Xi4. Built on the proven Xi series platform that is known for rugged durability and performance, the new Xi4 brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • UPC-A
  • UPC-E
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
Application/Usage:
Desktop
Features:
  • Mirror Printing
  • Clear Media Side Door
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Die-cut Label
  • Roll Fed
  • Black Mark
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8.11"
Maximum Label Width:
5.51"
Maximum Label Length:
12.50 ft
Label Core Size:
2.99"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
11.3"
Depth:
20.4"
Weight (Approximate):
55 lb
Miscellaneous
Package Contents:
  • 140Xi4 Label Printer
  • North American Edition, 120 VAC Power Cord
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • IEC 60950-1 / EN60950
  • KCC
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 140-801-00003 Barcode Label Printer is also known as ZEB-14080100003
