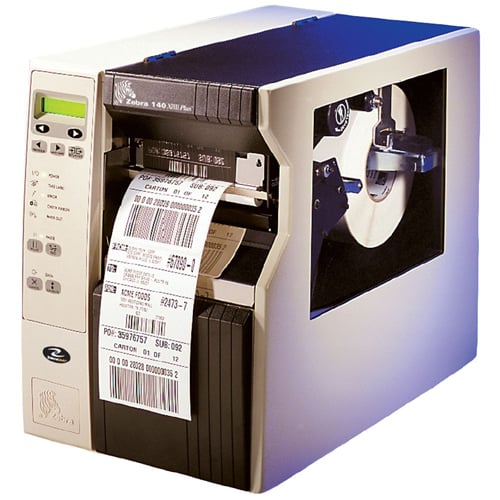

Zebra 140XiIIIPlus – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 140-7F1-00000
Model: 140XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Wi-Fi
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer Printing, 203 DPI, 5?? Print Width, USB/RS-232/Wi-Fi Ready(Wi-Fi Card Required) Interfaces. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Explore all Zebra 140XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 140-7F1-00000 Barcode Label Printer
Zebra 140-7F1-00000 Barcode Label Printer
Zebra 140-7F1-00000 Barcode Label Printer
Zebra 140-7F1-00000 Barcode Label Printer Zebra 140-7F1-00000 Barcode Label Printer

Full specifications (PDF)

Zebra 140XiIIIPlus Barcode Label Printer Model Overview

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 140-7F1-00000 Barcode Label Printer Overview

140XiIII Plus is known for its high performance, mission critical ruggedness. This hardworking printer is the one to call on for heavy-duty, industrial operations. With a powerful performance and steel construction, it is the ideal choice for high-volume, mission critical applications with 24 hour duty cycles. The 140XiIII Plus is also well suited for applications in which labels are required quickly, on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140XiIII Plus Label Printer
  • Power Cord with US Plug
  • User's Guide
Cables Included:
AC
Additional Information:
  • Unicode -Compliant
  • Clear Media Side Door
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Transmissive and reflective media sensors
  • Enhanced Alert notification -monitors printhead condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
