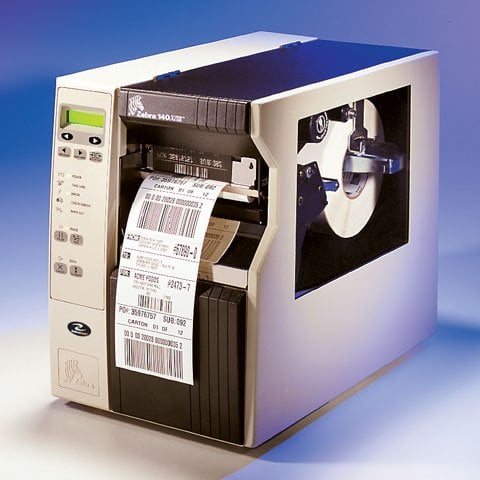

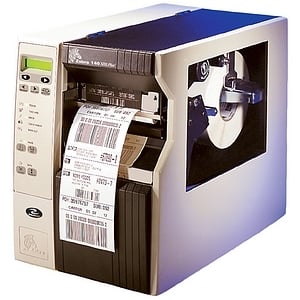

Zebra 140-7E1-00000 Barcode Label Printer

The Zebra 140-7E1-00000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 140XiIIIPlus - Direct Thermal/Thermal Transfer Printing, 203 DPI, 5ΓÇ¥ Print Width, USB/RS-232/Wi-Fi Ready(Wi-Fi Card Required) Interfaces, Clear Media Side Door, Media Hanger. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Wi-Fi
Print Resolution
203 dpi
Max Print Width
5.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
  • 5.51" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for dependable, efficient results with maximum productivity
  • Comes with 16 MB standard memory for timely printing with added reliability
  • 5.04" x Roll Paper media size for better reliance and maximum usability
Read More

Need a different version? See all Zebra 140XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 140-7E1-00000 Barcode Label Printer
Zebra 140-7E1-00000 Barcode Label Printer Zebra 140-7E1-00000 Barcode Label Printer Zebra 140-7E1-00000 Barcode Label Printer
Zebra 140-7E1-00000 Barcode Label Printer
Zebra 140-7E1-00000 Barcode Label Printer

Full specifications (PDF)
Zebra 140XiIIIPlus Barcode Label Printer Model Overview
The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 140-7E1-00000 Barcode Label Printer Overview

140XiIII Plus is known for its high performance, mission critical ruggedness. This hardworking printer is the one to call on for heavy-duty, industrial operations. With a powerful performance and steel construction, it is the ideal choice for high-volume, mission critical applications with 24 hour duty cycles. The 140XiIII Plus is also well suited for applications in which labels are required quickly, on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
  • Label
Media Size:
5.04" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140XiIII Plus Label Printer
  • Power Cord with US Plug
  • User's Guide
Cables Included:
AC
Additional Information:
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • ZebraNet Wireless Plus Print Server
  • North American Edition, 120 VAC Cord
  • Clear Media Side Door and Media Hanger
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 140-7E1-00000 Barcode Label Printer is also known as ZEB-1407E100000 or 140-7E1-00000.
