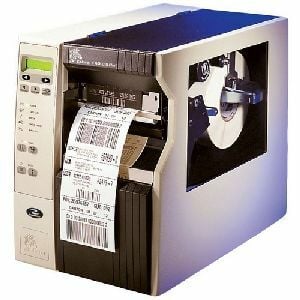

Zebra 140XiIIIPlus – Barcode Label Printer – 203 dpi – Thermal Transfer – Rewinder

Part Number: 140-7A1-00200
Model: 140XiIIIPlus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer Printing, 203 DPI, 5?? Print Width, USB/RS-232/Parallel Interfaces. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Explore all Zebra 140XiIIIPlus Barcode Label Printers
Add to Quote
Zebra 140-7A1-00200 Barcode Label Printer
Zebra 140-7A1-00200 Barcode Label Printer
Zebra 140-7A1-00200 Barcode Label Printer
Zebra 140-7A1-00200 Barcode Label Printer Zebra 140-7A1-00200 Barcode Label Printer

Full specifications (PDF)

Zebra 140XiIIIPlus Barcode Label Printer Model Overview

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 140-7A1-00200 Barcode Label Printer Overview

140XiIII Plus is known for its high performance, mission critical ruggedness. This hardworking printer is the one to call on for heavy-duty, industrial operations. With a powerful performance and steel construction, it is the ideal choice for high-volume, mission critical applications with 24 hour duty cycles. The 140XiIII Plus is also well suited for applications in which labels are required quickly, on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • UCC
  • Codabar
  • ISBT-128
  • Planet Code
  • UPC-A
  • EAN-8
  • Plessey
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • RSS
  • UPC-E
  • EAN-13
  • POSTNET
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • MSI
  • LOGMARS
  • Codablock
  • Maxi Code
  • TLC 39
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Micro PDF
Rewinder:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Tape
  • Die-cut Label
  • Black Mark
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
  • 3.20" x 984 ft
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Software
Software Included:
  • Adobe Acrobat
  • Windows Drivers
  • Direct Zebra Web Access
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140XiIII Plus Label Printer
  • Power Cord with US Plug
  • User's Guide
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Hanger
  • Ribbon width: 1.57" to 5.1"
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • PCMCIA socket
  • CompactFlash socket
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Certifications & Standards:
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
