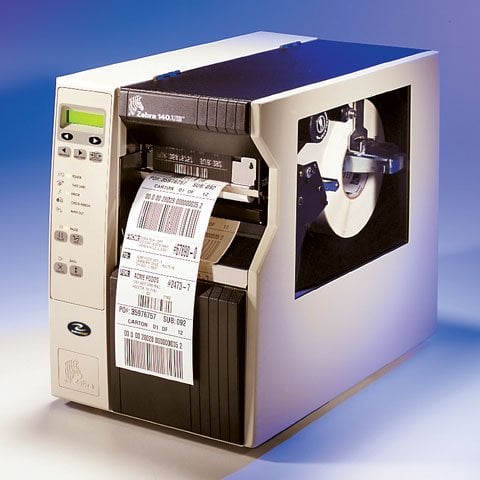

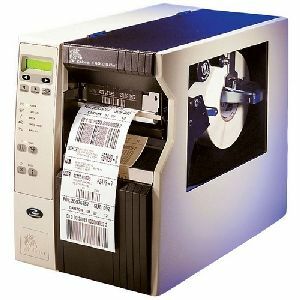

Zebra 140-7A1-00000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra 140XiIIIPlus - Thermal transfer Printing, 203 dpi, 5' Print width, Ethernet/USB/RS-232 Interfaces, Clear Media Side Door, Media Hanger. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232 (Part# 52184).
The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 ips.

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 ips. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.51"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Internal ZebraNet 10/100 Print Server
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • Bi-National UL 60950 Third Edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
    • IEC 950/EN60950: 1992 w/amendments 1 through 4 (CB Scheme)
    • EN55022: 1998 Class B
    • EN55024: 1998
    • EN61000-3-2, 3 w/amendment A12
    • Canadian ICES-003 Class B
    • FCC Class B
    • Argentina 92/98 Phase 3
    • Australia AS/NZS 3548
    • R.O.C. CNS 13438
    • BSMI
    • CCC
    • CE
    • C-Tick
    • cUL
    • GOST-R
    • NOM
    • S Mark
    • VCCI
    • ZIK

Other

  • Package Contents:
    • 140XiIIIPlus Label Printer
    • North American Edition Power Cord
    • User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • Zebra Designer
    • Zebra Designer Pro
    • Universal Windows Printer Driver
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Direct Zebra Web Access
    • ZebraNet Connectivity CD

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 140XiIIIPlus
Max Roll Outer Diameter 8
Max Label Width 5.51
Label Core 3 inches
Interface Options USB, Serial, Ethernet
Printer Type Industrial
Print Resolution 203 dpi
Print Method Thermal Transfer
Print Speed 12
Maximum Print Width 5.04
Printer Mobility Not Mobile
Ribbon Core 1
