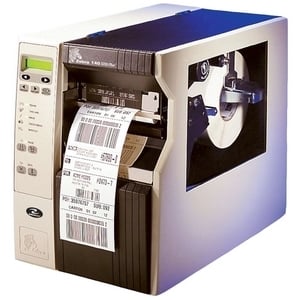

Zebra 140-741-00300 Barcode Label Printer

The Zebra 140-741-00300 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra 140XiIIIPlus - Direct Thermal/Thermal Transfer Printing, 203 DPI, 5ΓÇ¥ Print Width, Ethernet/USB/RS-232 Interfaces, Cutter, Rewinder. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
5.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 200 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 5.51" maximum label width for your convenience and feasible usability
  • 39" maximum label length for dependable, desired results
  • Supports continuous tape media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
  • 8" x Roll Paper media size for maximum feasibility and better accommodation of your requirements
Read More

Need a different version? See all Zebra 140XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra 140-741-00300 Barcode Label Printer
Zebra 140-741-00300 Barcode Label Printer Zebra 140-741-00300 Barcode Label Printer Zebra 140-741-00300 Barcode Label Printer
Zebra 140-741-00300 Barcode Label Printer
Zebra 140-741-00300 Barcode Label Printer

Full specifications (PDF)

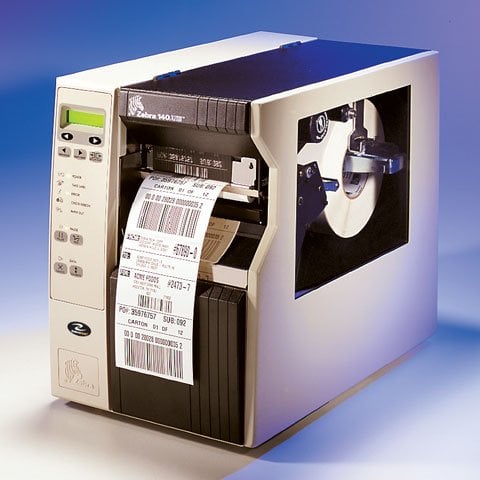

Zebra 140XiIIIPlus Barcode Label Printer Model Overview
The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • UCC
  • Codabar
  • ISBT-128
  • Planet Code
  • UPC-A
  • EAN-8
  • Plessey
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • RSS
  • UPC-E
  • EAN-13
  • POSTNET
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • MSI
  • LOGMARS
  • Codablock
  • Maxi Code
  • TLC 39
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Micro PDF
Rewinder:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Tape
  • Die-cut Label
  • Black Mark
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
  • 3.20" x 984 ft
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Software
Software Included:
  • Adobe Acrobat
  • Windows Drivers
  • Direct Zebra Web Access
  • BAR-ONE Lite/Platinum demo
  • JefForm Central ERP Solution
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140XiIIIPlus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Clear Media Side Door & Media Hanger
  • Ribbon width: 1.57" to 5.1"
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • PCMCIA socket
  • CompactFlash socket
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Certifications & Standards:
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • EN55022 Class B
  • EN55024
  • EN6100-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • NOM
  • S Mark
  • VCCI
  • ZIK
  • R.O.C. CNS 13438
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 140-741-00300 Barcode Label Printer is also known as ZEB-140-741-00300 or 140-741-00300.
