Zebra 140-701-00100 Barcode Label Printer

The Zebra 140-701-00100 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra 140XiIIIPlus - Direct Thermal/Thermal Transfer Printing, 203 DPI, 5ΓÇ¥ Print Width, USB/RS-232/Parallel Interfaces, Cutter. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Printer Options

Cutter

Max Print Width

5.5 inch

Ribbon Core Size

1 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
200 maximum print resolution (dpi) for your convenience and easy usage
Produce high-quality documents with this monochrome printer to increase your productivity
Label Print gives dependable results with maximum productivity
5.51" maximum label width for your convenience and feasible usability
Supports continuous tape media type for better reliance and maximum usability
Cutter helps you determine the whereabouts of your design you want the shape to be cut to ensure maximum efficiency
Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
8" x Roll Paper media size for maximum feasibility and better accommodation of your requirements
LCD display is long-lasting with reduced screen burning to ensure maximum efficiency

Need a different version? See all Zebra 140XiIIIPlus Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

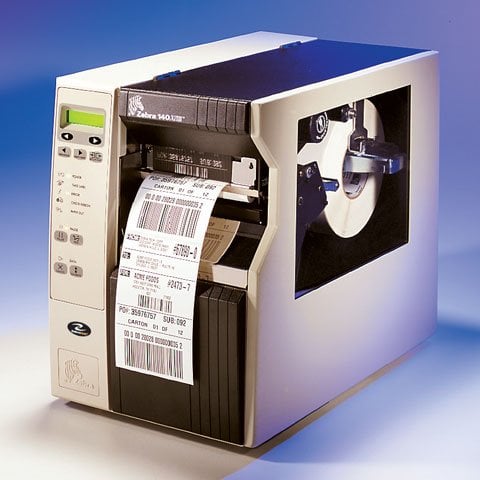

Zebra 140-701-00100 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 140XiIIIPlus Barcode Label Printer Model Overview

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.

Zebra 140-701-00100 Barcode Label Printer Overview

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second (ips). With such powerful performance capabilities and all metal construction, it is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control and work-in-process labels. The 140XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

200

Maximum Print Width:

5.04"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
UCC
Codabar
ISBT-128
Planet Code
UPC-A
EAN-8
Plessey
Interleaved 2 of 5
Industrial 2 of 5
Standard 2 of 5
RSS
UPC-E
EAN-13
POSTNET
EAN With 2 or 5 Digit Extension
UPC 2 or 5 Digit Extension
MSI
LOGMARS
Codablock
Maxi Code
TLC 39
PDF-417
Data Matrix
Code 49
QR Code
Code 128-A
Code 128-B
Code 128-C
Micro PDF

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Media Types & Handling

Media Type:

Continuous Tape
Die-cut Label
Black Mark

Media Size:

8" x Roll Paper
3.20" x 1476 ft
3.20" x 984 ft

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

12.01 mil

Maximum Roll Diameter:

Maximum Label Width:

5.51"

Label Core Size:

12 mil

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II
ZBI

Software

Software Included:

Adobe Acrobat
Windows Drivers
Direct Zebra Web Access
BAR-ONE Lite/Platinum demo
JefForm Central ERP Solution

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

11.2"

Depth:

19.5"

Miscellaneous

Package Contents:

140XiIIIPlus Label Printer
Xi IIIPlus User's Guide
Utility & Driver CD
ZebraNet Connectivity CD
North American Edition Power Cord

Cables Included:

Additional Information:

Clear Media Side Door & Media Hanger
Ribbon width: 1.57" to 5.1"
Advanced media/ribbon counter
Enhanced Alert notification monitors printhead condition
300 unique darkness settings
PCMCIA socket
CompactFlash socket
Transmissive and reflective media sensors
Multi-level Element Energy Equalizer (E3) for superior print quality

Certifications & Standards:

FCC Class B
EN55024: 1998
R.O.C. CNS 13438
Australia AS/NZS 3548
EN55022: 1998 Class B
Argentina 92/98 Phase 3
Canadian ICES-003, Class B
EN61000-3-2,3 W/amendment A12
IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra 140-701-00100 Barcode Label Printer is also known as ZEB-140XIIII+CUT or 140-701-00100.
